INTRODUCTION

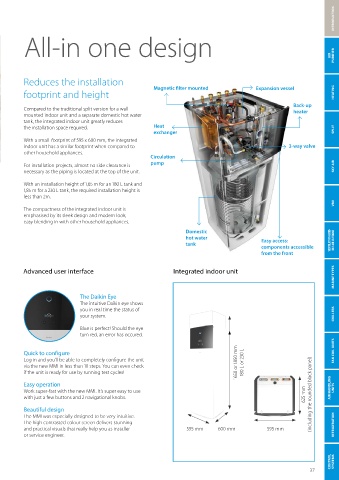

All-in one design AIR PURIFIER

Reduces the installation
Magnetic filter mounted Expansion vessel
footprint and height HEATING
Back-up
Compared to the traditional split version for a wall heater
mounted indoor unit and a separate domestic hot water
tank, the integrated indoor unit greatly reduces
the installation space required. Heat
exchanger SPLIT
With a small footprint of 595 x 600 mm, the integrated
indoor unit has a similar footprint when compared to 3-way valve
other household appliances.
Circulation
pump
For installation projects, almost no side clearance is SKY AIR
necessary as the piping is located at the top of the unit.

With an installation height of 1,65 m for an 180 L tank and
1,85 m for a 230 L tank, the required installation height is
less than 2m.
VRV
The compactness of the integrated indoor unit is
emphasised by its sleek design and modern look,
easy blending in with other household appliances.
Domestic
hot water Easy access:
tank VENTILATION & BID- DLE AIR CURTAINS
components accessible
from the front

MARINE TYPES
Advanced user interface Integrated indoor unit

The Daikin Eye
The intuitive Daikin eye shows
you in real time the status of
your system. CHILLERS

Blue is perfect! Should the eye
turn red, an error has occured.

Quick to configure FAN COIL UNITS
Log in and you’ll be able to completely configure the unit
via the new MMI in less than 10 steps. You can even check 1650 or 1850 mm 180 L or 230 L
if the unit is ready for use by running test cycles!

Easy operation UNITS
Work super-fast with the new MMI. It’s super easy to use 625 mm AIR HANDLING
with just a few buttons and 2 navigational knobs. (including the rounded black panel)

Beautiful design
The MMI was especially designed to be very intuitive.
The high contrasted colour screen delivers stunning REFRIGERATION
and practical visuals that really help you as installer 595 mm 600 mm 595 mm
or service engineer.
