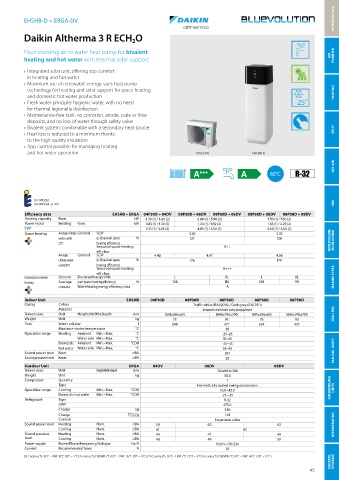

Page 47 - General Catalogue

INTRODUCTION

EHSHB-D + ERGA-DV

Daikin Altherma 3 R ECH O
2
Floor standing air to water heat pump for bivalent
heating and hot water with thermal solar support AIR PURIFIER

› Integrated solar unit, offering top comfort
in heating and hot water
› Maximum use of renewable energy: uses heat pump
technology for heating and solar support for space heating HEATING
and domestic hot water production
› Fresh water principle: hygienic water, with no need
for thermal legionella disinfection
› Maintenance-free tank: no corrosion, anode, scale or lime
deposits, and no loss of water through safety valve
› Bivalent system: combinable with a secondary heat source SPLIT
› Heat loss is reduced to a minimum thanks
to the high quality insulation
› App control possible for managing heating
and hot water operation ERGA-DV EHSHB-D
A + SKY AIR

A +++ A 65°C

A ++ B
A + C
011-1W0262
011-1W0264  267 VRV
A D
Efficiency data EHSHB + ERGA 04P30D + 04DV 08P30D + 06DV 08P50D + 06DV 08P30D + 08DV 08P50D + 08DV
Heating capacity Nom. kW 4.30 (1) / 4.60 (2) 6.00 (1) / 5.90 (2) 7.50 (1) / 7.80 (2)
Power input Heating Nom. kW 0.85 (1) / 1.26 (2) B 1.24 (1) / 1.69 (2) E 1.63 (1) / 2.23 (2)
COP 5.10 (1) / 3.65 (2) 4.85 (1) / 3.50 (2) 4.60 (1) / 3.50 (2)
C
Space heating Average climate General SCOP 3.26 F 3.32
water outlet ŋs (Seasonal space % 127 130 VENTILATION & BID- DLE AIR CURTAINS
55°C heating efficiency)
Seasonal space heating D A++ G
eff. class
Average General SCOP 4.48 4.47 4.56
climate water ŋs (Seasonal space % 176 E 179
outlet35°C heating efficiency)
Seasonal space heating F A+++
eff. class
Domestic hot water General Declared load profile L XL L XL MARINE TYPES
heating Average ŋwh (water heating efficiency) % 108 G 110 108 110
climate Water heating energy efficiency class A
Indoor Unit EHSHB 04P30D 08P30D 08P50D 08P30D 08P50D
Casing Colour Traffic white (RAL9016) / Dark grey (RAL7011)
Material Impact resistant polypropylene
Dimensions Unit HeightxWidthxDepth mm 1891x595x615 1896x790x790 1891x595x615 1896x790x790 CHILLERS
Weight Unit kg 73 93 73 93
Tank Water volume l 294 477 294 477
Maximum water temperature °C 85
Operation range Heating Ambient Min.~Max. °C -25~25
Water side Min.~Max. °C 18~65
Domestic Ambient Min.~Max. °CDB -25~35
hot water Water side Min.~Max. °C 25~55
Sound power level Nom. dBA 39.1 FAN COIL UNITS
Sound pressure level Nom. dBA 28
Outdoor Unit ERGA 04DV 06DV 08DV
Dimensions Unit HeightxWidthxDepth mm 740x884x388
Weight Unit kg 58.5
Compressor Quantity 1
Type Hermetically sealed swing compressor
Operation range Cooling Min.~Max. °CDB 10.0~43.0 AIR HANDLING UNITS
Domestic hot water Min.~Max. °CDB -25 ~35
Refrigerant Type R-32
GWP 675.0
Charge kg 1.50
Charge TCO2Eq 1.01
Control Expansion valve
Sound power level Heating Nom. dBA 58 60 62 REFRIGERATION
Cooling Nom. dBA 61 62
Sound pressure Heating Nom. dBA 44 47 49
level Cooling Nom. dBA 48 49 50
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1N~/50/230
Current Recommended fuses A 25
CONTROL SYSTEMS
(1) Cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) Cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C )
