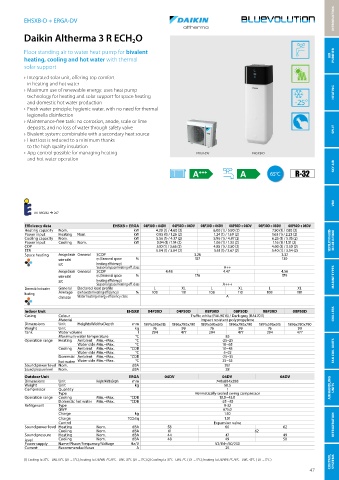

INTRODUCTION

EHSXB-D + ERGA-DV

Daikin Altherma 3 R ECH O
2
Floor standing air to water heat pump for bivalent
heating, cooling and hot water with thermal AIR PURIFIER
solar support
› Integrated solar unit, offering top comfort
in heating and hot water
› Maximum use of renewable energy: uses heat pump HEATING
technology for heating and solar support for space heating
and domestic hot water production
› Fresh water principle: hygienic water, with no need for thermal
legionella disinfection
› Maintenance-free tank: no corrosion, anode, scale or lime
deposits, and no loss of water through safety valve SPLIT
› Bivalent system: combinable with a secondary heat source
› Heat loss is reduced to a minimum thanks
to the high quality insulation
› App control possible for managing heating ERGA-DV EHSXB-D
and hot water operation A +

A +++ A 65°C SKY AIR

A ++ B
A + C

A D VRV
011-1W0262  267
B E
Efficiency data EHSXB + ERGA 04P30D + 04DV 04P50D + 04DV 08P30D + 06DV 08P50D + 06DV 08P30D + 08DV 08P50D + 08DV
Heating capacity Nom. kW 4.30 (1) / 4.60 (2) 6.00 (1) / 5.90 (2) 7.50 (1) / 7.80 (2)
Power input Heating Nom. kW 0.85 (1) / 1.26 (2) C 1.24 (1) / 1.69 (2) F 1.63 (1) / 2.23 (2)
Cooling capacity Nom. kW 5.56 (1) / 4.37 (2) 5.96 (1) / 4.87 (2) 6.25 (1) / 5.35 (2)
Power input Cooling Nom. kW 0.94 (1) / 1.14 (2) 1.06 (1) / 1.33 (2) 1.16 (1) / 1.51 (2) VENTILATION & BID- DLE AIR CURTAINS
COP 5.10 (1) / 3.65 (2) D 4.85 (1) / 3.50 (2) G 4.60 (1) / 3.50 (2)
EER 5.94 (1) / 3.84 (2) 5.61 (1) / 3.67 (2) 5.40 (1) / 3.54 (2)
Space heating Average climate General SCOP 3.26 3.32
water outlet ŋs (Seasonal space % E 127 130
55°C heating efficiency) A++
Seasonal space heating eff. class
Average climate General SCOP 4.48 F 4.47 4.56
water outlet ŋs (Seasonal space % 176 179 MARINE TYPES
35°C heating efficiency) G
Seasonal space heating eff. class A+++
Domestic hot water General Declared load profile L XL L XL L XL
heating Average ŋwh (water heating efficiency) % 108 110 108 110 108 110
climate Water heating energy efficiency class A
Indoor Unit EHSXB 04P30D 04P50D 08P30D 08P50D 08P30D 08P50D
Casing Colour Traffic white (RAL9016) / Dark grey (RAL7011) CHILLERS
Material Impact resistant polypropylene
Dimensions Unit HeightxWidthxDepth mm 1891x595x615 1896x790x790 1891x595x615 1896x790x790 1891x595x615 1896x790x790
Weight Unit kg 76 99 76 99 76 99
Tank Water volume l 294 477 294 477 294 477
Maximum water temperature °C 85
Operation range Heating Ambient Min.~Max. °C -25~25
Water side Min.~Max. °C 18~65
Cooling Ambient Min.~Max. °CDB 10~43
Water side Min.~Max. °C 5~22 FAN COIL UNITS
Domestic Ambient Min.~Max. °CDB -25~35
hot water Water side Min.~Max. °C 25~55
Sound power level Nom. dBA 39.1
Sound pressure level Nom. dBA 28
Outdoor Unit ERGA 04DV 06DV 08DV
Dimensions Unit HeightxWidthxDepth mm 740x884x388
Weight Unit kg 58.5
Compressor Quantity 1 AIR HANDLING UNITS
Type Hermetically sealed swing compressor
Operation range Cooling Min.~Max. °CDB 10.0~43.0
Domestic hot water Min.~Max. °CDB -25 ~35
Refrigerant Type R-32
GWP 675.0
Charge kg 1.50
Charge TCO2Eq 1.01
Control Expansion valve
Sound power level Heating Nom. dBA 58 60 62 REFRIGERATION
Cooling Nom. dBA 61 62
Sound pressure Heating Nom. dBA 44 47 49
level Cooling Nom. dBA 48 49 50
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1N~/50/230
Current Recommended fuses A 25
CONTROL SYSTEMS
(1) Cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) Cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C )
