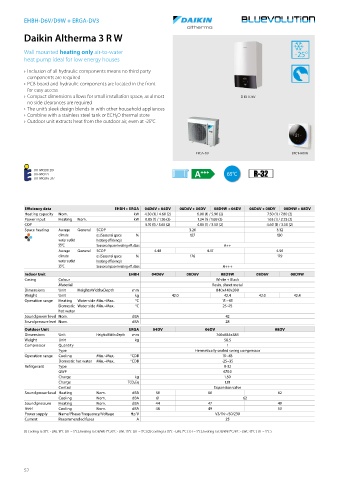

Page 54 - General Catalogue

EHBH-D6V/D9W + ERGA-DV3

Daikin Altherma 3 R W

Wall mounted heating only air-to-water
heat pump ideal for low energy houses

› Inclusion of all hydraulic components means no third party
components are required
› PCB board and hydraulic components are located in the front
for easy access
› Compact dimensions allows for small installation space, as almost EHBH-D6V
no side clearances are required
› The unit’s sleek design blends in with other household appliances
› Combine with a stainless steel tank or ECH 2O thermal store
› Outdoor unit extracts heat from the outdoor air, even at -25°C

ERGA-DV BRC1HHDW

011-1W0218-219 +++
011-1W0221 A 65°C
011-1W0246-247
A ++
A +

A
Efficiency data EHBH + ERGA 04D6V + 04DV 08D6V + 06DV 08D9W + 06DV 08D6V + 08DV 08D9W + 08DV
Heating capacity Nom. kW 4.30 (1) / 4.60 (2) 6.00 (1) / 5.90 (2) 7.50 (1) / 7.80 (2)
1.24 (1) / 1.69 (2)
Power input Heating Nom. kW 0.85 (1) / 1.26 (2) B 1.63 (1) / 2.23 (2)
COP 5.10 (1) / 3.65 (2) 4.85 (1) / 3.50 (2) 4.60 (1) / 3.50 (2)
Space heating Average General SCOP 3.26 3.32
C
climate ŋs (Seasonal space % 127 130
water outlet heating efficiency)
55°C Seasonal space heating eff. class D A++
Average General SCOP 4.48 4.47 4.56
E
climate ŋs (Seasonal space % 176 179
water outlet heating efficiency)
35°C Seasonal space heating eff. class A+++
F
Indoor Unit EHBH 04D6V 08D6V 08D9W 08D6V 08D9W
Casing Colour G White + Black
Material Resin, sheet metal
Dimensions Unit HeightxWidthxDepth mm 840x440x390
Weight Unit kg 42.0 42.4 42.0 42.4
Operation range Heating Water side Min.~Max. °C 15 ~65
Domestic Water side Min.~Max. °C 25~75
hot water
Sound power level Nom. dBA 42
Sound pressure level Nom. dBA 28
Outdoor Unit ERGA 04DV 06DV 08DV
Dimensions Unit HeightxWidthxDepth mm 740x884x388
Weight Unit kg 58.5
Compressor Quantity 1
Type Hermetically sealed swing compressor
Operation range Cooling Min.~Max. °CDB 10~43
Domestic hot water Min.~Max. °CDB -25~35
Refrigerant Type R-32
GWP 675.0
Charge kg 1.50
Charge TCO2Eq 1.01
Control Expansion valve
Sound power level Heating Nom. dBA 58 60 62
Cooling Nom. dBA 61 62
Sound pressure Heating Nom. dBA 44 47 49
level Cooling Nom. dBA 48 49 50
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1N~/50/230
Current Recommended fuses A 25

(1) Cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) Cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C )
