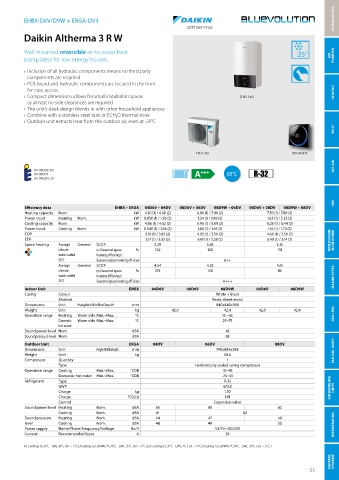

EHBX-D6V/D9W + ERGA-DV3

Daikin Altherma 3 R W

Wall mounted reversible air-to-water heat
pump ideal for low energy houses AIR PURIFIER

› Inclusion of all hydraulic components means no third party
components are required
› PCB board and hydraulic components are located in the front
for easy access HEATING
› Compact dimensions allows for small installation space, EHBX-D6V
as almost no side clearances are required
› The unit’s sleek design blends in with other household appliances
› Combine with a stainless steel tank or ECH 2O thermal store
› Outdoor unit extracts heat from the outdoor air, even at -25°C
SPLIT

ERGA-DV BRC1HHDK
SKY AIR
011-1W0218-219 +++
011-1W0221 A 65°C
011-1W0246-247
A ++
A +

A
Efficiency data EHBX + ERGA 04D6V + 04DV 08D6V + 06DV 08D9W + 06DV 08D6V + 08DV 08D9W + 08DV VRV
Heating capacity Nom. kW 4.30 (1) / 4.60 (2) 6.00 (1) / 5.90 (2) 7.50 (1) / 7.80 (2)
Power input Heating Nom. kW 0.850 (1) / 1.26 (2) 1.24 (1) / 1.69 (2) 1.63 (1) / 2.23 (2)
Cooling capacity Nom. kW 4.86 (1) / 4.52 (2) B 6.25 (1) / 5.44 (2)
5.96 (1) / 5.09 (2)
Power input Cooling Nom. kW 0.940 (1) / 1.36 (2) 1.06 (1) / 1.55 (2) 1.16 (1) / 1.73 (2)
COP 5.10 (1) / 3.65 (2) C 4.60 (1) / 3.50 (2)
4.85 (1) / 3.50 (2)
EER 5.17 (1) / 3.32 (2) 5.61 (1) / 3.28 (2) 5.40 (1) / 3.14 (2) VENTILATION & BID- DLE AIR CURTAINS
Space heating Average General SCOP 3.29 D 3.28 3.35
climate ŋs (Seasonal space % 129 128 131
water outlet heating efficiency)
55°C Seasonal space heating eff. class E A++
Average General SCOP 4.54 4.52 4.61
climate ŋs (Seasonal space % 179 F 178 181
water outlet heating efficiency) MARINE TYPES
35°C Seasonal space heating eff. class G A+++
Indoor Unit EHBX 04D6V 08D6V 08D9W 08D6V 08D9W
Casing Colour White + Black
Material Resin, sheet metal
Dimensions Unit HeightxWidthxDepth mm 840x440x390
Weight Unit kg 42.0 42.4 42.0 42.4
Operation range Heating Water side Min.~Max. °C 15 ~65 CHILLERS
Domestic Water side Min.~Max. °C 25~75
hot water
Sound power level Nom. dBA 42
Sound pressure level Nom. dBA 28
Outdoor Unit ERGA 04DV 06DV 08DV
Dimensions Unit HeightxWidthxDepth mm 740x884x388 FAN COIL UNITS
Weight Unit kg 58.5
Compressor Quantity 1
Type Hermetically sealed swing compressor
Operation range Cooling Min.~Max. °CDB 10~43
Domestic hot water Min.~Max. °CDB -25~35
Refrigerant Type R-32
GWP 675.0 AIR HANDLING UNITS
Charge kg 1.50
Charge TCO2Eq 1.01
Control Expansion valve
Sound power level Heating Nom. dBA 58 60 62
Cooling Nom. dBA 61 62
Sound pressure Heating Nom. dBA 44 47 49
level Cooling Nom. dBA 48 49 50 REFRIGERATION
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1N~/50/230
Current Recommended fuses A 25

(1) Cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) Cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C )
