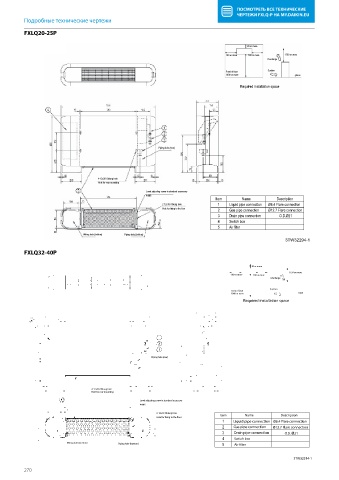

Подробные технические чертежи
FXLQ20-25P

FXLQ20-25P 20 or more

100 or more 100 or more 1750 or more
Discharge
Front of face Suction
1000 or more Base
Required installation space

Piping hole (rear)

4-12x30 Oblong hole
Hole for rear mounting
Level adjusting screw in standard accessory
4xM6
Item Name Description
2-12x18 Oblong hole 1 Liquid pipe connection Ø6.4 Flare connection
Hole for fixing to the oorf 2 Gas pipe connection Ø12.7 Flare connection
3 Drain pipe connection O.D.Ø21
4 Switch box
5 Air ilterf
Wiring hole (bottom) Piping hole (bottom)
3TW32294-1

FXLQ32-40P
FXLQ32-40P
20 or more
1750 or more
100 or more 100 or more
Discharge
Suction
Front of face
1000 or more Base
Required installation space

Piping hole (rear)

4-12x30 Oblong hole
Hole for rear mounting
Level adjusting screw in standard accessory
4xM6
2-12x18 Oblong hole Item Name Description
Hole for xing to the oor
Liquid pipe connection ø6.4 Flare connection
Gas pipe connection ø12.7 Flare connection
Drain pipe connection O.D. ø21
Switch box
Wiring hole (bottom) Piping hole (bottom) Air lter

3TW32314-1
