ПОСМОТРЕТЬ ВСЕ ТЕХНИЧЕСКИЕ
ЧЕРТЕЖИ FXNQ-A НА MY.DAIKIN.EU

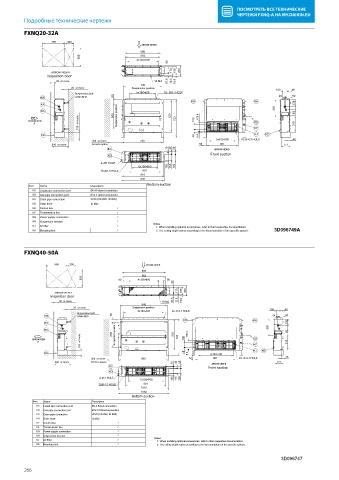

Подробные технические чертежи
FXNQ20-32A
FXNQ20-32A
790 300
ARROW VIEW B
680
620 662
4x150=600
80
ARROW VIEW A 170 156 200
Inspection door
20 or more 14-M4 57.5 12.5 19.5
740
20 or more
Suspension position 100 48
Suspension bolt 5x100= 500 16- Ø4.7 HOLE
KB 4-M8~M10 60 24 90
KH KH
KA 130
KC 330 63
ARROW VIEW 500 Suspension position 620 723 100 179.4 KD
A 100 or more KF 310
KK KJ KE
48 8.4
790 5x100= 500 16- Ø 4.3 HOLE 46
300 or more
240 or more Service space 50 601 171
KJ 10 42 50 ARROW VIEW B
Front suction
KG
4-Ø5 HOLE
5x100= 500 180 116 100
16-Ø4.3 HOLE 601
810
830
Bottom suction
Item Name Description
KA Liquid pipe connection port Ø6.40 flared connection
KB Gas pipe connection port Ø12.7 flared connection
KC Drain pipe connection VP20 (OD Ø26, ID Ø20)
KD Drain hose ID Ø25
KE Control box /
KF Transmission line /
KG Power supply connection /
KH Suspension bracket /
KJ Air filter / Notes
1. When installing optional accessories, refer to their respective documentation.
KK Mounting foot / 2. The ceiling depth varies according to the documentation of the specific system. 3D096749A
FXNQ40-50A
FXNQ40-50A
990 300 ARROW VIEW B
880
862
620 90 4x150= 600 90
80
170 156 200
ARROW VIEW A
Inspection door
20 or more 18-M4 57.5 12.5 19.5
940
20 or more
Suspension position
8x100= 800 22-Ø 4.7 HOLE 100 48
Suspension bolt
KB 4-M8~M10 60 24 90
KH KH
KA 130
KC 330 63
ARROW VIEW 500 Suspension position 620 723 100 179.4 KD
A 100 or more KF 310
KJ KE
KK 48 8.4 7x100= 700
300 or more 990 50 801 20- Ø 4.3 HOLE 46
240 or more Service space 10 42 50 ARROW VIEW B 171
KJ Front suction
KG
4- Ø 5 HOLE
7x100= 700 180 116 100
20- Ø 4.3 HOLE 801
1010
1030
Bottom suction
Item Name Description
KA Liquid pipe connection port Ø6.4 flared connection
KB Gas pipe connection port Ø12.70 flared connection
KC Drain pipe connection VP20 (OD Ø26, ID Ø20)
KD Drain hose ID Ø25
KE Control box /
KF Transmission line /
KG Power supply connection /
KH Suspension bracket / Notes
KJ Air filter / 1. When installing optional accessories, refer to their respective documentation.
KK Mounting foot / 2. The ceiling depth varies according to the documentation of the specific system.
3D096747
