ПОСМОТРЕТЬ ВСЕ ТЕХНИЧЕСКИЕ
ЧЕРТЕЖИ FXHQ-A НА MY.DAIKIN.EU

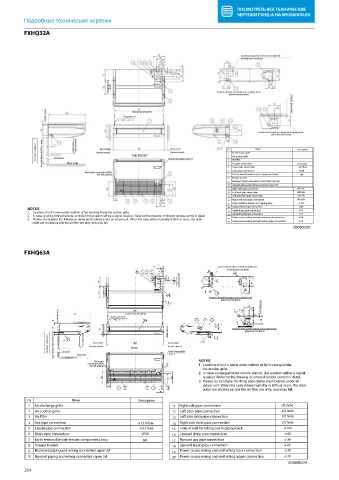

Подробные технические чертежи
FXHQ32A

FXHQ32A
Connection position of fresh air intake kit
ø 100 (knock-out hole)

(hanging bolt pitch)
Position slit hole for taking out in piping back
(view from the front)
(required space)
(required space) Hanging bolt
(hanging bolt pitch)

Position: hole wall for taking out in piping back
(view from the front)
For height installation From the oor side 2500 or more obstacle 300 or more (required space) (service space) THE FRONT brand nameplate (note 2) Nr 1 2 3 Air discharge grille Name Description
30 or more
30 or more
(service space)
Air suction grille
Air lter
oor side
Liquid pipe connection
ø 9.5 are
VP20
Drain pipe connection
6 4 5 Gas pipe connection ø 15.9 are
Drain pipe connection VP20
(for left piping) 7 Earth terminal (inside electric components box) M4
8 Hanger bracket
9 Backward piping and wiring connection open lid
10 Upward piping and wiring connection open lid
11 Right side pipe connection slit hole
12 Left back pipe connection slit hole
13 Left side drain pipe connection slit hole
14 Right side drain pipe connection slit hole
15 Hole of wall for taking out in piping back ø 100
NOTES 16 Upward drain pipe connection ø 60
17 Upward gas pipe connection
ø 36
1. Location of unit`s name plate: bottom of fan housing inside the suction grille.
2. In case of using infrared remote controller, this position will be a signal receiver. Refer tot the drawing of infrared remote control in detail. 18 Upward liquid pipe connection ø 26
3. Please do not place the thing been damp and troubled under an indoor unit. When the case where humidity is 80% or more, the drain 19 Power source wiring and unit wiring back connection ø 29
outlet are choked up and the air filter are dirty, dew may fall. 20 Power source wiring and unit wiring upper connection ø 29
3D080029
FXHQ63A
FXHQ63A Connection position of fresh air intake kit
ø 100 (knock-out hole)
(suspension position)
Position slit hole for taking out in piping back
(view from the front)
(required space)
(required space) suspension bolt (suspension position)

Position: hole wall for taking out in piping back
(view from the front)
For height installation From the oor side 2500 or more obstacle 300 or more (required space) (service space) FRONT 30 or more
30 or more
(service space)
brand nameplate
oor side
Drain pipe note 2 NOTES
connection VP20 1. Location of unit`s name plate: bottom of fan housing inside
(for left piping)
the suction grille.
2. In case of using infrared remote control, this position will be a signal
receiver. Refer tot the drawing of infrared remote control in detail.
3. Please do not place the thing been damp and troubled under an
indoor unit. When the case where humidity is 80% or more, the drain
outlet are choked up and the air filter are dirty, dew may fall.
Nr Name Description
1 Air discharge grille 11 Right side pipe connection slit hole
2 Air suction grille 12 Left back pipe connection slit hole
3 Air lter 13 Left side drain pipe connection slit hole
4 Gas pipe connection ø 15.9 are 14 Right side drain pipe connection slit hole
5 Liquid pipe connection ø 9.5 are 15 Hole of wall for taking out in piping back ø 100
6 Drain pipe connection VP20 16 Upward drain pipe connection ø 60
7 Earth terminal (inside electric components box) M4 17 Upward gas pipe connection ø 36
8 Hanger bracket 18 Upward liquid pipe connection ø 26
9 Backward piping and wiring connection open lid 19 Power source wiring and unit wiring back connection ø 29
10 Upward piping and wiring connection open lid 20 Power source wiring and unit wiring upper connection ø 29
3D069632A
264
