ПОСМОТРЕТЬ ВСЕ ТЕХНИЧЕСКИЕ
ЧЕРТЕЖИ FXSQ-A НА MY.DAIKIN.EU

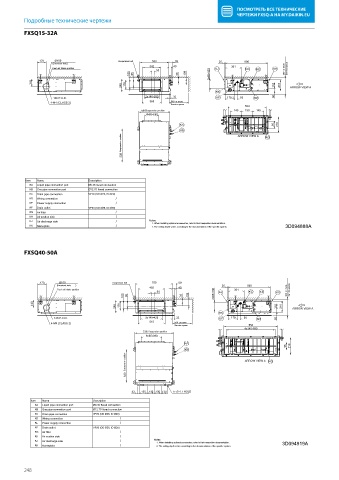

Подробные технические чертежи
FXSQ15-32A
FXSQ15-32A

170 Ø100 Suspension bolt 550 69 25 800
( )
Knockout hole.
342 40 301
Fresh air intake position KJ KC KE KH
50 130 300 or more Service space
100 65 38 109
2x65=
140
245 178 110 210 ARROW VIEW A
KK
2x140= 280 32 50
126 P.C.D. KF 179.2 50 KD
4-M4 (CLASS 2) 365 500 or more
Service space
504
588 Suspension position 145 150 145
4x65= 260
KA 95 210
KB ARROW VIEW A
Suspension position KG
630

Item Name Description
KA Liquid pipe connection port Ø6.35 flared connection
KB Gas pipe connection port Ø12.70 flared connection
KC Drain pipe connection VP20 (OD Ø26, ID Ø20)
KD Wiring connection /
KE Power supply connection /
KF Drain outlet VP20 (OD Ø26, ID Ø20)
KG Air filter /
KH Air suction side /
KJ Air discharge side / Notes
1. When installing optional accessories, refer to their respective documentation.
KK Nameplate / 2. The ceiling depth varies according to the documentation of the specific system. 3D094888A

FXSQ40-50A
FXSQ40-50A

170 Ø100 Suspension bolt 700 69
( ) 492 40 25 800
Knockout hole.
Fresh air intake position 301
50 130 KJ KC KE KH 300 or more Service space
100 65 38 109 2x65=
140
245 178 110 210 ARROW VIEW A
KK
126 P.C.D. 3x140= 420 32 KF 179 50 KD 50
515
4-M4 (CLASS 2) 500 or more
Service space 654
4x145= 590
738 Suspension position
6x65= 390
KA
95 210
KB
Suspension position ARROW VIEW A KG
630

42 155 130 130 120 5- Ø 4.7 HOLE
Item Name Description
KA Liquid pipe connection port Ø6.35 flared connection
KB Gas pipe connection port Ø12.70 flared connection
KC Drain pipe connection VP20 (OD Ø26, ID Ø20)
KD Wiring connection /
KE Power supply connection /
KF Drain outlet VP20 (OD Ø26, ID Ø20)
KG Air filter /
KH Air suction side /
KJ Air discharge side / Notes 3D094919A
1. When installing optional accessories, refer to their respective documentation.
KK Nameplate / 2. The ceiling depth varies according to the documentation of the specific system.

248
