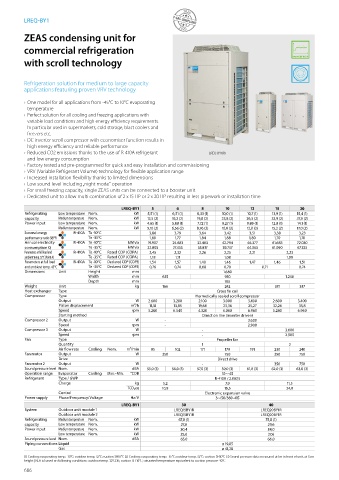

LREQ-BY1

ZEAS condensing unit for

commercial refrigeration
with scroll technology

Refrigeration solution for medium to large capacity
applications featuring proven VRV technology

› One model for all applications from -45°C to 10°C evaporating
temperature
› Perfect solution for all cooling and freezing applications with
variable load conditions and high energy efficiency requirements.
In particular used in supermarkets, cold storage, blast coolers and
freezers etc.
› DC inverter scroll compressor with economiser function results in
high energy efficiency and reliable performance
› Reduced CO2 emissions thanks to the use of R-410A refrigerant LREQ-BY1(R)
and low energy consumption
› Factory tested and pre-programmed for quick and easy installation and commissioning
› VRV (Variable Refrigerant Volume) technology for flexible application range
› Increased installation flexibility thanks to limited dimensions
› Low sound level including „night mode“ operation
› For small freezing capacity, single ZEAS units can be connected to a booster unit
› Dedicated unit to allow multi combination of 2 x 15 HP or 2 x 20 HP resulting in less pipework or installation time

LREQ-BY1 5 6 8 10 12 15 20
Refrigerating Low temperature Nom. kW 5,51 (1) 6,51 (1) 8,33 (1) 10,0 (1) 10,7 (1) 13,9 (1) 15,4 (1)
capacity Medium temperature Nom. kW 12,5 (2) 15,2 (2) 19,8 (2) 23,8 (2) 26,5 (2) 33,9 (2) 37,9 (2)
Power input Low temperature Nom. kW 4,65 (1) 5,88 (1) 7,72 (1) 9,27 (1) 9,89 (1) 12,8 (1) 14,1 (1)
Medium temperature Nom. kW 5,10 (2) 6,56 (2) 8,76 (2) 10,6 (2) 12,0 (2) 15,2 (2) 17,0 (2)
Seasonal energy R-410A Te -10°C 3,86 3,79 3,64 3,42 3,51 3,38 3,23
performance ratio SEPR Te -35°C 1,80 1,77 1,84 1,88 1,80 1,70 1,70
Annual electricity R-410A Te -10°C kWh/a 19.907 24.681 33.483 42.794 46.377 61.683 72.030
consumption Q Te -35°C kWh/a 22.805 27.453 33.817 39.747 44.363 61.090 67.325
Parameters at full load and R-410A Te -10°C Rated COP (COPA) 2,45 2,32 2,26 2,25 2,21 2,23
ambient temp. 32°C (Point A) Te -35°C Rated COP (COPA) 1,18 1,11 1,08 1,09
Parameters at full load R-410A Te -10°C Declared COP (COP3) 1,54 1,57 1,40 1,46 1,47 1,46 1,51
and ambient temp. 43°C Te -35°C Declared COP (COP3) 0,76 0,74 0,68 0,70 0,71 0,74
Dimensions Unit Height mm 1.680
Width mm 635 930 1.240
Depth mm 765
Weight Unit kg 166 242 331 337
Heat exchanger Type Cross fin coil
Compressor Type Hermetically sealed scroll compressor
Output W 2.600 3.200 2.100 3.000 3.400 2.600 3.400
Piston displacement m³/h 11,18 13,85 19,68 23,36 25,27 32,24 35,8
Speed rpm 5.280 6.540 4.320 6.060 6.960 5.280 6.960
Starting method Direct on line (inverter driven)
Compressor 2 Output W - 3.600
Speed rpm - 2.900
Compressor 3 Output W - 3.600
Speed rpm - 2.900
Fan Type Propeller fan
Quantity 1 2
Air flow rate Cooling Nom. m³/min 95 102 171 179 191 230 240
Fan motor Output W 350 750 350 750
Drive Direct drive
Fan motor 2 Output W - 350 750
Sound pressure level Nom. dBA 55,0 (3) 56,0 (3) 57,0 (3) 59,0 (3) 61,0 (3) 62,0 (3) 63,0 (3)
Operation range Evaporator Cooling Max.~Min. °CDB 10~-45
Refrigerant Type / GWP R-410A / 2.087,5
Charge kg 5,2 7,9 11,5
TCO₂eq 10,9 16,5 24,0
Control Electronic expansion valve
Power supply Phase/Frequency/Voltage Hz/V 3~/50/380-415
LREQ-BY1 30 40
System Outdoor unit module 1 LREQ15BY1R LREQ20BY1R
Outdoor unit module 2 LREQ15BY1R LREQ20BY1R
Refrigerating Medium temperature Nom. kW 67,8 (1) 75,8 (1)
capacity Low temperature Nom. kW 27,8 29,6
Power input Medium temperature Nom. kW 30,4 34,0
Low temperature Nom. kW 25,6 27,6
Sound pressure level Nom. dBA 65,0 66,0
Piping connections Liquid ø 19,05
Gas ø 41,28
(1) Cooling: evaporating temp. -10°C; outdoor temp. 32°C; suction SH10°C (2) Cooling: evaporating temp. -35°C; outdoor temp. 32°C; suction SH10°C (3) Sound pressure data: measured at 1m in front of unit, at 1.5m
height | RLA is based on following conditions: outdoor temp. 32°CDB; suction SH 10°C; saturated temperature equivalent to suction pressure -10°C
