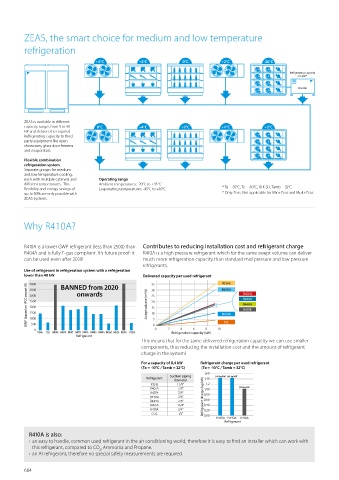

ZEAS, the smart choice for medium and low temperature

refrigeration

+4°C +2°C 0°C +2°C -20°C

Refrigerating capacity
3.35 kW*
Booster

ZEAS is available in different
capacity ranges from 5 to 40 0°C +4°C +2°C +4°C +2°C
HP and delivers the required
Refrigerating capacity to third
party equipment like open
showcases, glass door freezers
and evaporators
Flexible combination
refrigeration system
Separate groups for medium
and low temperature cooling,
each with multiple cabinets and Operating range
different temperatures. This Ambient temperatures: -20°C to +43 °C
flexibility and energy savings of Evaporating temperatures: -45°C to +10°C * Te= -35°C, Tc = -10°C, 10 K SH, Tamb = 32°C
up to 50% are only possible with * Only Zeas. Not applicable for Mini-Zeas and Multi-Zeas
ZEAS-systems.

Why R410A?

R410A is a lower GWP refrigerant (less than 2500) than Contributes to reducing installation cost and refrigerant charge
R404A and is fully F-gas compliant. It’s future proof: it R410A is a high pressure refrigerant which for the same swept volume can deliver
can be used even after 2030! much more refrigeration capacity than standard mid pressure and low pressure
refrigerants.
Use of refrigerant in refrigeration system with a refrigeration
lower than 40 kW Delivered capacity per used refrigerant
4500 BANNED from 2020 40 R450A
R134a
35
4000
GWP (based on IPCC report IV) 3000 onwards Swept volume (m 3 /h) 25 15 10 R410A R407A
3500
30
R449A
2500
20
R448A
2000
R407F
1500
1000
5
500
0 0 0 2 4 6 8 10 CO 2
R134a R32 R404A R407A R407C R407F R410A R448A R449A R450A R452A R507A R513A Refrigeration capacity (kW)
Refrigerant
This means that for the same delivered refrigeration capacity we can use smaller
components, thus reducing the installation cost and the amount of refrigerant
charge in the system!
For a capacity of 8,4 kW Refrigerant charge per used refrigerant
(Te = -10°C / Tamb = 32°C) (Te = -10°C / Tamb = 32°C)
1,60
Refrigerant Suction piping 1,40 1,43 kg/kW 1,43 kg/kW
diameter
R134a 1 1/8” 1,2
R407A 7/8” 1,00 1,03 kg/kW
R407F 7/8” 0,80
R448A 7/8” Refrigerant charge (kg/kW)
R449A 7/8” 0,60
R450A 1 1/4” 0,40
R410A 3/4” 0,20
CO2 1/2” 0,00
R448A R449A R410A
Refrigerant
R410A is also:
› an easy to handle, common used refrigerant in the air conditioning world, therefore it is easy to find an installer which can work with
this refrigerant, compared to CO , Ammonia and Propane.
2
› an A1 refrigerant, therefore no special safety measurements are required.
