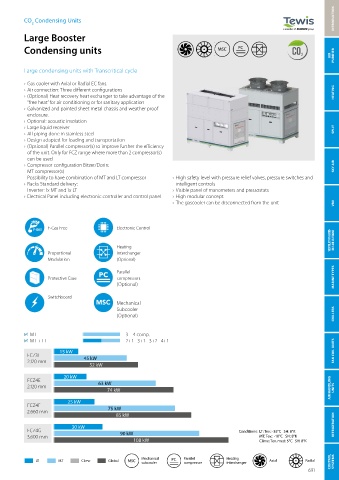

Page 693 - General Catalogue

INTRODUCTION

CO Condensing Units
2
Large Booster

Condensing units MSC PC
AIR PURIFIER

Large condensing units with Transcritical cycle

› Gas cooler with Axial or Radial EC fans.
› Air connection: Three different configurations
› (Optional) Heat recovery heat exchanger to take advantage of the HEATING
“free heat” for air conditioning or for sanitary application
› Galvanized and painted sheet metal chassis and weather proof
enclosure.
› Optional: acoustic insolation
› Large liquid receiver SPLIT
› All piping done in stainless steel
› Design adapted for loading and transportation
› (Optional) Parallel compressor(s) to improve further the efficiency
of the unit. Only for FCZ range where more than 2 compressor(s)
can be used
› Compressor configuration Bitzer/Dorin: SKY AIR
MT compressor(s)
Possibility to have combination of MT and LT compressor › High safety level with pressure relief valves, pressure switches and
› Racks Standard delivery: intelligent controls
Inverter: 1x MT and 1x LT › Visible panel of manometers and pressostats
› Electrical Panel including electronic controller and control panel › High modular concept.
› The gascooler can be disconnected from the unit VRV

F-Gas Free Electronic Control
VENTILATION & BID- DLE AIR CURTAINS

Heating
Proportional Interchanger
Modulation (Optional)

Parallel
Protective Case compressors MARINE TYPES
(Optional)
Switchboard
Mechanical
Subcooler
(Optional) CHILLERS

MT 3 4 comp.
MT + LT 2+1 3+1 3+2 4+1
15 kW FAN COIL UNITS
FCZ3E 45 kW
2.120 mm
52 kW
20 kW
FCZ4E 63 kW
2.120 mm UNITS
74 kW AIR HANDLING
25 kW
FCZ4F 75 kW
2.660 mm
85 kW
30 kW REFRIGERATION
FCZ4G 90 kW Conditions: LT: Tev.: -35°C SH: 8°K
3.600 mm MT: Tev.: -10°C SH: 8°K
108 kW Clime: Tev. med: 5°C SH: 8°K

LT MT Clime Global MSC Mechanical PC Parallel Heating Axial Radial CONTROL SYSTEMS
subcooler
compressor
interchanger
