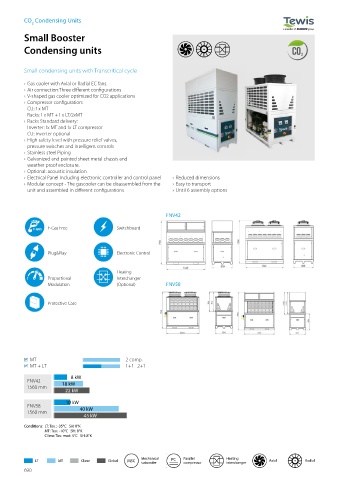

CO Condensing Units
2
Small Booster

Condensing units

Small condensing units with Transcritical cycle

› Gas cooler with Axial or Radial EC fans.
› Air connection:Three different configurations
› V-shaped gas cooler optimized for CO2 applications
› Compressor configuration:
CU: 1 x MT
Racks: 1 x MT + 1 x LT/2xMT
› Racks Standard delivery:
Inverter: 1x MT and 1x LT compressor
CU: inverter optional
› High safety level with pressure relief valves,
pressure switches and intelligent controls
› Stainless steel Piping
› Galvanized and painted sheet metal chassis and
weather proof enclosure.
› Optional: acoustic insulation
› Electrical Panel including electronic controller and control panel › Reduced dimensions
› Modular concept - The gascooler can be disassembled from the › Easy to transport
unit and assembled in different configurations › Until 6 assembly options

FNV42

F-Gas Free Switchboard

Plug&Play Electronic Control

Heating
Proportional Interchanger
Modulation (Optional) FNV58

Protective Case

MT 2 comp.
MT + LT 1+1 2+1
8 kW
FNV42 18 kW
1.560 mm
22 kW

10 kW
FNV58 40 kW
1.560 mm
45 kW
Conditions: LT: Tev.: -35°C SH: 8°K
MT: Tev.: -10°C SH: 8°K
Clime: Tev. med: 5°C SH: 8°K

LT MT Clime Global MSC Mechanical PC Parallel Heating Axial Radial
compressor
interchanger
subcooler
