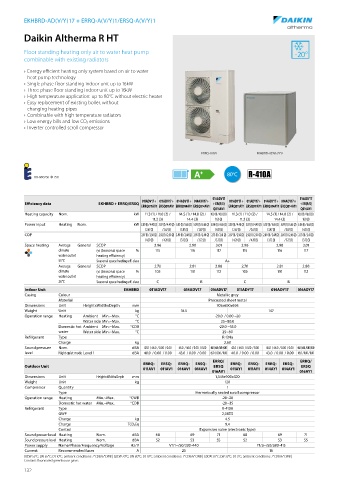

P. 134
EKHBRD-AD(V/Y)17 + ERRQ-A(V/Y)1/ERSQ-A(V/Y)1
Daikin Altherma R HT
Floor standing heating only air to water heat pump
combinable with existing radiators
› Energy efficient heating only system based on air to water
heat pump technology
› Single phase floor standing indoor unit up to 16kW
› Three phase floor standing indoor unit up to 16kW
› High temperature application: up to 80°C without electric heater
› Easy replacement of existing boiler, without
changing heating pipes
› Combinable with high temperature radiators
› Low energy bills and low CO 2 emissions
› Inverter controlled scroll compressor
A +++ EKHBRD-ADV17/Y17
ERRQ-AAV1
A ++
A + 80°C
011-1W0256 258
A
B 016ADV17 016ADY17
011ADV17 + 011ADV17 + 014ADV17 + 014ADV17 + 011ADY17 + 011ADY17 + 014ADY17 + 014ADY17 +
Efficiency data EKHBRD + ERRQ/ERSQ + ER(R/S) + ER(R/S)
ERRQ011AV1 ERSQ011AV1 ERRQ014AV1 ERSQ014AV1 Q016AV1 ERRQ011AY1 ERSQ011AY1 ERRQ014AY1 ERSQ014AY1 Q016AY1
C
Heating capacity Nom. kW 11.3 (1) / 11.0 (2) / 14.5 (1) / 14.0 (2) / 16.0 (1) / 16.0 (2) / 11.3 (1) / 11.0 (2) / 14.5 (1) / 14.0 (2) / 16.0 (1) / 16.0 (2) /
11.2 (3) 14.4 (3) 16.0 (3) 11.2 (3) 14.4 (3) 16.0 (3)
D
Power input Heating Nom. kW 3.80 (1) / 4.40 (2) 3.87 (1) / 4.40 (2) 5.02 (1) / 5.65 (2) 5.09 (1) / 5.65 (2) 5.86 (1) / 6.65 (2) 3.80 (1) / 4.40 (2) 3.87 (1) / 4.40 (2) 5.02 (1) / 5.65 (2) 5.09 (1) / 5.65 (2) 5.86 (1) / 6.65 (2)
/ 2.67 (3) / 2.67 (3) / 3.87 (3) / 3.87 (3) / 4.31 (3) / 2.67 (3) / 2.67 (3) / 3.87 (3) / 3.87 (3) / 4.31 (3)
E
COP 2.97 (1) / 2.50 (2) 2.92 (1) / 2.50 (2) 2.89 (1) / 2.48 (2) 2.85 (1) / 2.48 (2) 2.73 (1) / 2.41 (2) 2.97 (1) / 2.50 (2) 2.92 (1) / 2.50 (2) 2.89 (1) / 2.48 (2) 2.85 (1) / 2.48 (2) 2.73 (1) / 2.41 (2)
/ 4.20 (3) / 4.20 (3) / 3.72 (3) / 3.72 (3) / 3.72 (3) / 4.20 (3) / 4.20 (3) / 3.72 (3) / 3.72 (3) / 3.72 (3)
F
Space heating Average General SCOP 2.96 2.98 3.01 2.96 2.98 3.01
climate ŋs (Seasonal space % 115 116 117 115 116 117
water outlet heating efficiency)
55°C Seasonal space heating eff. class G A+
Average General SCOP 2.70 2.81 2.88 2.70 2.81 2.88
climate ŋs (Seasonal space % 105 110 112 105 110 112
water outlet heating efficiency)
35°C Seasonal space heating eff. class C B C B
Indoor Unit EKHBRD 011ADV17 014ADV17 016ADV17 011ADY17 014ADY17 016ADY17
Casing Colour Metallic grey
Material Precoated sheet metal
Dimensions Unit HeightxWidthxDepth mm 705x600x695
Weight Unit kg 144 147
Operation range Heating Ambient Min.~Max. °C -20.0 / 0.00 ~20
Water side Min.~Max. °C 25~80.0
Domestic hot Ambient Min.~Max. °CDB -20.0 ~35.0
water Water side Min.~Max. °C 25~80
Refrigerant Type R-134a
Charge kg 2.60
Sound pressure Nom. dBA 43.0 / 46.0 / 0.00 / 0.00 45.0 / 46.0 / 0.00 / 0.00 46.0 / 46.0 / 0.00 / 0.00 43.0 / 46.0 / 0.00 / 0.00 45.0 / 46.0 / 0.00 / 0.00 46.0 / 46.0 / 0.00 / 0.00
level Night quiet mode Level 1 dBA 40.0 / 0.00 / 0.00 43.0 / 0.00 / 0.00 45.0 / 0.00 / 0.00 40.0 / 0.00 / 0.00 43.0 / 0.00 / 0.00 45.0 / 0.00 / 0.00
ERRQ/ ERRQ/
ERRQ- ERSQ- ERRQ- ERSQ- ERRQ- ERSQ- ERRQ- ERSQ-
Outdoor Unit ERSQ ERSQ
011AV1 011AV1 014AV1 014AV1 011AY1 011AY1 014AY1 014AY1
016AV1 016AY1
Dimensions Unit HeightxWidthxDepth mm 1,345x900x320
Weight Unit kg 120
Compressor Quantity 1
Type Hermetically sealed scroll compressor
Operation range Heating Min.~Max. °CWB -20~20
Domestic hot water Min.~Max. °CDB -20~35
Refrigerant Type R-410A
GWP 2,087.5
Charge kg 4.5
Charge TCO2Eq 9.4
Control Expansion valve (electronic type)
Sound power level Heating Nom. dBA 68 69 71 68 69 71
Sound pressure level Heating Nom. dBA 52 53 55 52 53 55
Power supply Name/Phase/Frequency/Voltage Hz/V V1/1~/50/220-440 Y1/3~/50/380-415
Current Recommended fuses A 25 16
(1)EW 55°C; LW 65°C; Dt 10°C; ambient conditions: 7°CDB/6°CWB | (2)EW 70°C; LW 80°C; Dt 10°C; ambient conditions: 7°CDB/6°CWB | (3)EW 30°C; LW 35°C; Dt 5°C; ambient conditions: 7°CDB/6°CWB |
Contains fluorinated greenhouse gases
