INTRODUCTION

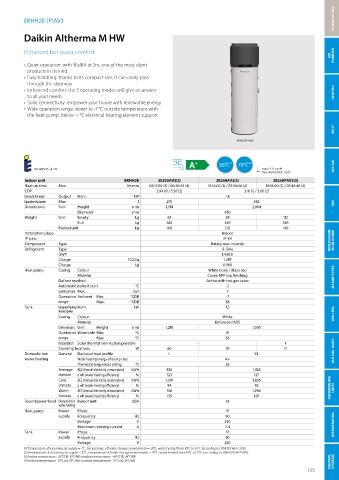

EKHH2E-(P)AV3

Daikin Altherma M HW

Enhanced hot water comfort
AIR PURIFIER
› Quiet operation: with 36dBA at 2m, one of the most silent
products in its kind
› Easy handling: thanks to its compact size, it can easily pass
through the doorway
› Enhanced comfort: the 3 operating modes will give an answer HEATING
to all your needs
› Solar connectivity: empower your house with renewable energy
› Wide operation range: down to -7 °C outside temperature with
the heat pump, below -7 °C electrical heating element support
SPLIT

EKHH2E-AV3
A +++

A + 56°C * 70°C ** SKY AIR
011-1W0215  217 * max ECO cycle
** max Automatic cycle
A
Indoor unit EKHH2E 2E200AV3(3) 2E260AV3(3) 2E260PAV3(3)
Heat up time Max. hh:mm 08:17:00 (3) / 06:30:44 (4) 10:14:00 (3) / 07:56:46 (4) 10:14:00 (3) / 07:46:46 (4)
2.94 (1) / 3.30 (2) B
COP 3.10 (1) / 3.60 (2)
Domestic hot water Output Nom kW 1.8
Equivalent hot water Max l 275 C 342 VRV
Dimensions Unit Height mm 1,714 2,004
Diameter mm D 650
Weight Unit Empty kg 83 95 112
Full kg 282 E 349 358
Packed unit kg 100 120 140
Installation place Indoor
IP class F IP-X4 VENTILATION & BID- DLE AIR CURTAINS
Compressor Type Rotary non-inverter
Refrigerant Type G R-134a
GWP 1,430.0
Charge TCO2Eq 1.287
Charge kg 0.900
Heat pump Casing Colour White body / Black top
Material Cover: EPP top finishing MARINE TYPES
Defrost method Active with hot gas valve
Automatic defrost start °C -2
System pressure Max. bar 7
Operation Ambient Min. °CDB -7
range Max. °CDB 38
Tank Integrated heating Nom. kW 1.5
element power
Casing Colour White CHILLERS
Material Embossed ABS
Dimensions Unit Height mm 1,210 1,500
Operation Water side Min. °C 10
range Max. °C 56
Installation Solar thermal connection possible - 1
Standing heat loss W 60 70 71
Domestic hot General Declared load profile L XL FAN COIL UNITS
water heating Water heating energy efficiency class A+
Thermostat temperature setting °C 55
Average AEC (Annual electricity consumption) kWh 835 1,323
climate ŋ wh (water heating efficiency) % 123 127
Cold AEC (Annual electricity consumption) kWh 1,091 1,826
climate ŋ wh (water heating efficiency) % 94 92 UNITS
Warm AEC (Annual electricity consumption) kWh 756 1,296 AIR HANDLING
climate ŋ wh (water heating efficiency) % 135 129
Sound power level Domestic hot Indoor unit dBA 53
water heating
Heat pump Power Phase 1P
supply Frequency Hz 50
Voltage V 230
Maximum running current A 2.4 REFRIGERATION
Tank Power Phase 1P
supply Frequency Hz 50
Voltage V 230
(1) Temperature of incoming air supply = 7°C, temperature of boiler storage environment = 20°C, water heated from 10°C to 55°C (according to UNI EN 16147-2011).
(2) Temperature of incoming air supply = 15°C, temperature of boiler storage environment = 20°C, water heated from 10°C to 55°C (according to UNI EN 1614 7-2011).
(3) Indoor temperature : 29°CDB, 19°CWB; outdoor temperature : 46°CDB, 24°CWB
(4) Indoor temperature : 27°CDB, 19°CWB; outdoor temperature : 35°CDB, 24°CWB CONTROL SYSTEMS
