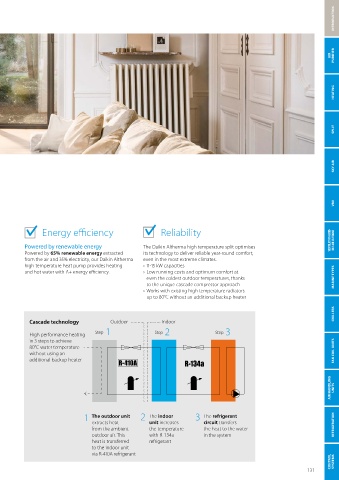

Energy efficiency Reliability

Powered by renewable energy The Daikin Altherma high temperature split optimises VENTILATION & BID- DLE AIR CURTAINS
Powered by 65% renewable energy extracted its technology to deliver reliable year-round comfort,
from the air and 35% electricity, our Daikin Altherma even in the most extreme climates.
high temperature heat pump provides heating › 11-15 kW capacities
and hot water with A+ energy efficiency. › Low running costs and optimum comfort at
even the coldest outdoor temperatures, thanks MARINE TYPES
to the unique cascade compressor approach
› Works with existing high temperature radiators
up to 80°C without an additional backup heater

CHILLERS

Cascade technology Outdoor Indoor
Step 1 Step 2 Step 3
High performance heating
in 3 steps to achieve
80°C water temperature
without using an FAN COIL UNITS
additional backup heater

AIR HANDLING UNITS

1 The outdoor unit 2 The indoor 3 The refrigerant
extracts heat unit increases circuit transfers REFRIGERATION
from the ambient the temperature the heat to the water
outdoor air. This with R-134a in the system
heat is transferred refrigerant
to the indoor unit
via R-410A refrigerant
