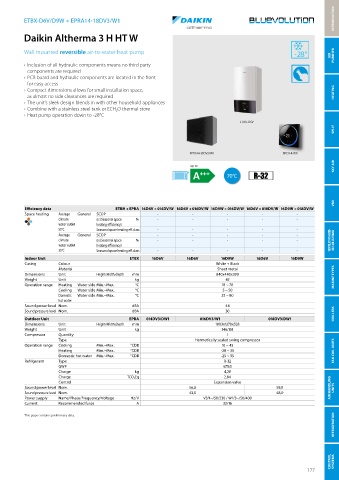

ETBX-D6V/D9W + EPRA14-18DV3/W1

Daikin Altherma 3 H HT W

Wall mounted reversible air-to-water heat pump
AIR PURIFIER
› Inclusion of all hydraulic components means no third party
components are required
› PCB board and hydraulic components are located in the front
for easy access
› Compact dimensions allows for small installation space, HEATING
as almost no side clearances are required
› The unit’s sleek design blends in with other household appliances
› Combine with a stainless steel tank or ECH 2O thermal store
› Heat pump operation down to -28°C
ETBX-D6V
SPLIT

EPRA14-18DV3/W1 BRC1HHDK
SKY AIR
up to
70°C

VRV
Efficiency data ETBH + EPRA 16D6V + 014DV/W 16D6V + 016DV/W 16D9W + 016DV/W 16D6V + 018DV/W 16D9W + 018DV/W
Space heating Average General SCOP - - - - -
climate ŋs (Seasonal space % - - - - -
water outlet heating efficiency)
55°C Seasonal space heating eff. class - - - - -
Average General SCOP - - - - -
climate ŋs (Seasonal space % - - - - - VENTILATION & BID- DLE AIR CURTAINS
water outlet heating efficiency)
35°C Seasonal space heating eff. class - - - - -
Indoor Unit ETBX 16D6V 16D6V 16D9W 16D6V 16D9W
Casing Colour White + Black
Material Sheet metal
Dimensions Unit HeightxWidthxDepth mm 840x440x390
Weight Unit kg 42 MARINE TYPES
Operation range Heating Water side Min.~Max. °C 18 ~ 70
Cooling Water side Min.~Max. °C 5 ~ 50
Domestic Water side Min.~Max. °C 25 ~ 80
hot water
Sound power level Nom. dBA 44
Sound pressure level Nom. dBA 30 CHILLERS
Outdoor Unit EPRA 014DV3/DW1 016DV3/W1 018DV3/DW1
Dimensions Unit HeightxWidthxDepth mm 1003x1270x533
Weight Unit kg 146/151
Compressor Quantity 1
Type Hermetically sealed swing compressor
Operation range Cooling Min.~Max. °CDB 10 ~ 43
Heating Min.~Max. °CDB -28 ~ 35 FAN COIL UNITS
Domestic hot water Min.~Max. °CDB -25 ~ 35
Refrigerant Type R-32
GWP 675.0
Charge kg 4,20
Charge TCO 2Eq 2,84
Control Expansion valve
Sound power level Nom. 56,0 59,0 AIR HANDLING UNITS
Sound pressure level Nom. 43,0 48,0
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1~/50/230 / W1/3~/50/400
Current Recommended fuses A 32/16
REFRIGERATION
This page contains preliminary data.
