Подробные технические чертежи VRV, ВСТУПЛЕНИЕ

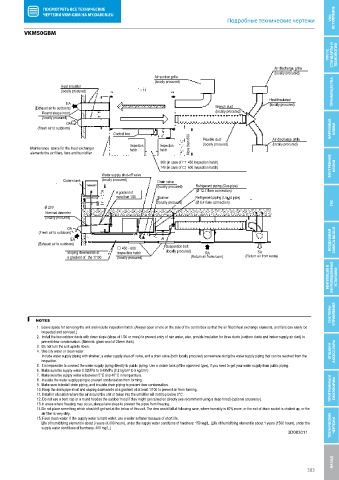

VKM50GBM
VKM50GBM
VRV IV, СТАНДАРТЫ И ТЕХНОЛОГИИ

Air discharge grille
(locally procured)
Air suction grille
(locally procured)
Heat insulator
(locally procured) ПРЕИМУЩЕСТВА
Heat insulated
EA (locally procured)
(Exhaust air to outdoors) Branch duct

Round shape hood (locally procured)

(locally procured)
OA
(Fresh air to outdoors) НАРУЖНЫЕ БЛОКИ
Control box Flexible duct Air discharge grille
Inspection Inspection More than 600 (locally procured) (locally procured)
Maintenance space for the heat exchanger hatch hatch
elements the air filters, fans and humidifier
360 (in case of □ 450 inspection hatch)
140 (in case of □ 600 inspection hatch) ВНУТРЕННИЕ БЛОКИ
Water supply shut-off valve
Cistern tank (locally procured) Drain valve
(locally procured) Refrigerant piping (Gas pipe)
A gradient of (Ø 12.7 flare connection)

more than 1/30 Strainer Refrigerant piping (Liquid pipe)

(locally procured) (Ø 6.4 flare connection) ГВС
Ø 200
Nominal diameter
(locally procured)
OA

(Fresh air to outdoors)
EA ВОЗДУШНАЯ ЗАВЕСА BIDDLE

(Exhaust air to outdoors)
□ 450 - 600 Suspention bolt

Sloping downwards at Inspection hatch (locally procured) RA SA
a gradient of the 1/100 (locally procured) (Return air from room) (Return air from room)

ВЕНТИЛЯЦИЯ И ВЕНТИЛЯЦИОННЫЕ УСТАНОВКИ

СИСТЕМЫ УПРАВЛЕНИЯ

NOTES
1. Leave space for servicing the unit and include inspection hatch. (Always open a hole on the side of the control box so that the air filters heat exchange elements, and fans can easily be
inspected and serviced.)
2. Install the two outdoor ducts with down slope (slope of 1/30 or more) to prevent entry of rain water, also, provide insulation for three ducts (outdoor ducts and indoor supply air duct) to
prevent dew condensation. (Material: glass wool of 25mm thick)
3. Do not turn the unit upside down.
4. Use city water or clean water. ОПЦИИ И АКСЕССУАРЫ
Include water supply piping with strainer, a water supply shut-off valve, and a drain valve (both locally procured) somewhere along the water supply piping that can be reached from the
inspection.
5. It is impossible to connect the water supply piping directly to public piping. Use a cistern tank (of the approved type), if you need to get your water supply from public piping.
6. Make sure the supply water 0.02MPa to 0.49MPa (0.2 kg/cm to 5 kg/cm )
2
2
7. Make sure the supply water is between 5°C and 40°C in temperature.
8. Insulate the water supply piping to prevent condensation from forming.
9. Make sure to install drain piping, and insulate drain piping to prevent dew condensation.
10. Keep the drain pipe short and sloping downwards at a gradient of at least 1/100 to prevent air from forming. ПРОГРАММЫ И ПЛАТФОРМЫ
11. Install in a location where the air around the unit or taken into the umidifier will not drop below 0°C.
12. Do not use a bent cap or a round hood as the outdoor hood if they might get rained on directly (we recommend using a deep hood) (optional accessory).
13. In areas where freezing may occur, always take steps to prevent the pipes from freezing.
14. Do not place something which shouldn’t get wet at the below of this unit. The dew would fall at following case, where humidity is 80% more, or the exit of drain socket is choked up, or the
air filter is very dirty.
15. Feed clean water. If the supply water is hard water, use a water softener because of short life.
Life of humidifying element is about 3 years (4,000 hours), under the supply water conditions of hardness: 150 mg/L. (Life of humidifying element is about 1 years (1500 hours), under the ТЕХНИЧЕСКИЕ ЧЕРТЕЖИ
supply water conditions of hardness: 400 mg/L.)
3D083011
