Подробные технические чертежи

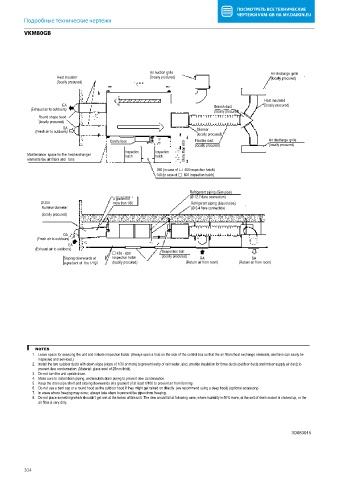

VKM80GB
VKM80GB

Air suction grille Air discharge grille
Heat insulator (locally procured) (locally procured)
(locally procured)

Heat insulated
EA Branch duct (locally procured)

(Exhaust air to outdoors) (locally procured)

Round shape hood
(locally procured)

OA
(Fresh air to outdoors) Silencer
(locally procured)
Control box Flexible duct Air discharge grille
(locally procured)
(locally procured)
Inspection Inspection More than 600
Maintenance space for the heat exchanger hatch hatch
elements the air filters and fans
360 (in case of □ 450 inspection hatch)

140 (in case of □ 600 inspection hatch)
Refrigerant piping (Gas pipe)
A gradient of (Ø 12.7 flare connection)

Ø 250 more than 1/30 Refrigerant piping (Liquid pipe)

Nominal diameter (Ø 6.4 flare connection)
(locally procured)

OA
air to outdoors)
(Fresh
EA

(Exhaust air to outdoors)
□ 450 - 600 Suspention bolt

Sloping downwards at Inspection hatch (locally procured) RA SA
a gradient of the 1/100 (locally procured) (Return air from room) (Return air from room)

NOTES
1. Leave space for servicing the unit and include inspection hatch. (Always open a hole on the side of the control box so that the air filters heat exchange elements, and fans can easily be
inspected and serviced.)
2. Install the two outdoor ducts with down slope (slope of 1/30 or more) to prevent entry of rain water, also, provide insulation for three ducts (outdoor ducts and indoor supply air duct) to
prevent dew condensation. (Material: glass wool of 25mm thick)
3. Do not turn the unit upside down.
4. Make sure to install drain piping, and insulate drain piping to prevent dew condensation.
5. Keep the drain pipe short and sloping downwards at a gradient of at least 1/100 to prevent air from forming.
6. Do not use a bent cap or a round hood as the outdoor hood if they might get rained on directly (we recommend using a deep hood) (optional accessory).
7. In areas where freezing may occur, always take steps to prevent the pipes from freezing.
8. Do not place something which shouldn’t get wet at the below of this unit. The dew would fall at following case, where humidity is 80% more, or the exit of drain socket is choked up, or the
air filter is very dirty.

3D083015
