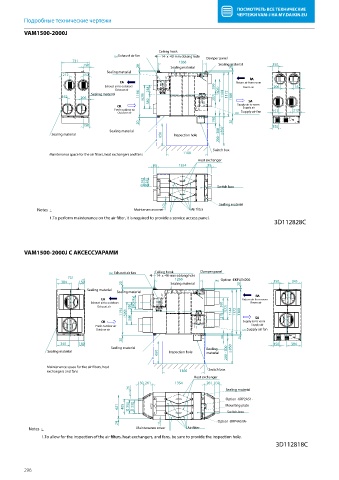

Подробные технические чертежи
VAM1500-2000J
VAM1500-2000J

Ceiling hook
(2x) Exhaust air fan ·4· - ·14· x ·40·mm oblong hole Damper panel

731 1266
150 20 Sealing material Sealing material 150

20
Sealing material
212 157
RA
EA Return air from room
Exhaust air to outdoors 399 Room air 206 162
Exhaust air 238 606
Sealing material 1194 1144 1172
162 206 628 207 1188
389 SA
OA Supply air to room
Supply air
Fresh outdoor air 212
Supply air fan
Outdoor air (2x) 157
198
20 20
150 150
Sealing material 850

Sealing material 650 Inspection hole 200 - 300 ≥

Switch box
Maintenance space for the air lters, heat exchangers and fans 1100
Heat exchanger
83 1354 83
262 245
Switch box

Sealing material
10
Notes : Maintenance cover Air lter

1.To perform maintenance on the air lter, it is required to provide a service access panel.
3D112828C

VAM1500-2000J
VAM1500-2000J С АКСЕССУАРАМИ

(2x) Exhaust air fan Ceiling hook Damper panel
731 ·4· - ·14· x ·40·mm oblong hole
1266
Option ·EKPLEN200·
384 150 20 Sealing material (4x) 20 150 345

Sealing material
Sealing material
RA
EA Return air from room
Exhaust air to outdoors 380 (4x) Room air
Exhaust air 250 360
1194 599 218 577 1144 1172 1188
SA
O A 348 Supply air to room
Fresh outdoor air Supply air
Supply air fan
Outdoor air (2x)
198 20
20
345 150 150 384
Sealing material Sealing 850
Sealing material 650 Inspection hole material 200 - 300 ≥

Maintenance space for the air lters, heat
exchangers and fans 1100 Switch box
Heat exchanger
130 261 1354 261 130
26 Sealing material

Option ·KRP2A51·

621 405 350 330 Mounting plate
Switch box

Option ·BRP4A50A·
24 10
Notes : Maintenance cover Air lter

1.To allow for the inspection of the air lters, heat exchangers, and fans, be sure to provide the inspection hole.
3D112818C
