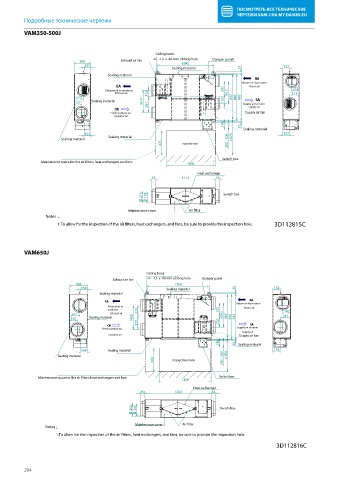

Подробные технические чертежи
VAM350-500J
VAM350-500J

Ceiling hook

305 Exhaust air fan ·4· - ·12· x ·40·mm oblong hole Damper panel
1045
122 122
Sealing material 22

Sealing material
RA
Return air from room
EA Room air
Exhaust air to outdoors 292 137
Exhaust air 126 417 173
173 837 866 883 SA
137 Sealing material 417 125 Supply air to room
291 Supply air
OA
Fresh outdoor air Supply air fan
Outdoor air
190 22 Sealing material
122 122
Sealing material Sealing material 200 - 300 675 ≥

475 Inspection hole
Switch box
Maintenance space for the air lters, heat exchangers and fans 900

Heat exchanger
78 1113 78

213 197 Switch box

Maintenance cover Air lter
Notes :
1.To allow for the inspection of the air lters, heat exchangers, and fans, be sure to provide the inspection hole. 3D112815C

VAM650J
VAM650J

Ceiling hook

Exhaust air fan ·4· - ·12· x ·40·mm oblong hole Damper panel
368 1266
154 Sealing material 22 154
Sealing material

RA
EA Return air from room
Exhaust air to Room air
outdoors 222 272 162
211 Exhaust air 491 211
162 Sealing material 493 887 920 933
272 220
O A SA
Fresh outdoor air Supply air to room
Supply air
Outdoor air Supply air fan

186 22 Sealing material

154 Sealing material 154
Sealing material ≥ 700
500 Inspection hole 200 - 300
Maintenance space for the air lters, heat exchangers and fans Switch box

1100
Heat exchanger
83 1354 83
262 245 Switch box

Maintenance cover Air lter
Notes :
1.To allow for the inspection of the air lters, heat exchangers, and fans, be sure to provide the inspection hole.
3D112816C
