Подробные технические чертежи VRV, ВСТУПЛЕНИЕ

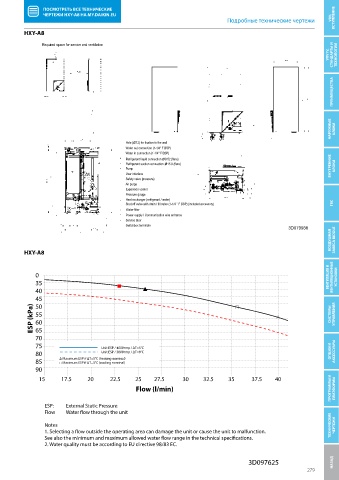

HXY-A8
HXY-A8
Required space for service and ventilation
VRV IV, СТАНДАРТЫ И ТЕХНОЛОГИИ

ПРЕИМУЩЕСТВА

НАРУЖНЫЕ БЛОКИ

Hole (ø12) for fixation to the wall
Water out connection (1-1/4” F BSP)
Water in connection (1-1/4” F BSP)
Refrigerant liquid connection ø9.52 (flare)
Refrigerant suction connection ø15.9 (flare) ВНУТРЕННИЕ БЛОКИ
Pump
User interface
Safety valve (pressure)
Air purge
Expansion vessel
Pressure gauge
Heat exchanger (refrigerant / water)
Shut off valve with drain / fill valve (1-1/4`` F BSP) (included accessory) ГВС
Water filter
Power supply / Communication wire entrance
Service door
Switchbox terminals
3D079938
ВОЗДУШНАЯ ЗАВЕСА BIDDLE

HXY-A8
HXY-A8

0 ВЕНТИЛЯЦИЯ И ВЕНТИЛЯЦИОННЫЕ УСТАНОВКИ
35
40
45
50
ESP (kPa) 55 СИСТЕМЫ УПРАВЛЕНИЯ

60
65
70
75 Unit ESP / 4000rmp / ∆T=5°C
80 Unit ESP / 3800rmp / ∆T=8°C ОПЦИИ И АКСЕССУАРЫ
85 ∆ Maximum ESP if ∆T=5°C (heating nominal)
□ Maximum ESP if ∆T=5°C (cooling nominal)
90
15 17.5 20 22.5 25 27.5 30 32.5 35 37.5 40
Flow (l/min) ПРОГРАММЫ И ПЛАТФОРМЫ

ESP: External Static Pressure
Flow Water ow through the unit
Notes ТЕХНИЧЕСКИЕ ЧЕРТЕЖИ
1. Selecting a ow outside the operating area can damage the unit or cause the unit to malfunction.
See also the minimum and maximum allowed water ow range in the technical speci cations.
2. Water quality must be according to EU directive 98/83 EC.

3D097625 НАЗАД Технические чертежи
