INTRODUCTION

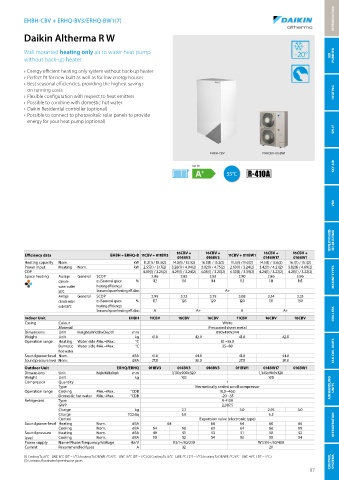

EHBH-CBV + ERHQ-BV3/ERHQ-BW1(7)

Daikin Altherma R W

Wall mounted heating only air to water heat pump
without back-up heater AIR PURIFIER

› Energy efficient heating only system without back-up heater
› Perfect fit for new built as well as for low energy houses
› Best seasonal efficiencies, providing the highest savings
on running costs HEATING
› Flexible configuration with respect to heat emitters
› Possible to combine with domestic hot water
› Daikin Residential controller (optional)
› Possible to connect to photovoltaïc solar panels to provide
energy for your heat pump (optional)
SPLIT

A +++ EHBH-CBV ERHQ011-016BW1
A ++
up to SKY AIR
A + 55°C
A

B

C VRV
D

E

F VENTILATION & BID- DLE AIR CURTAINS
16CBV + 16CBV + 16CBV + 16CBV +
Efficiency data EHBH + ERHQ-B 11CBV + 011BV3 11CBV + 011BW1
014BV3 G 016BV3 014BW17 016BW1
Heating capacity Nom. kW 11.2(1) / 10.3(2) 14.0(1) / 13.1(2) 16.0(1) / 15.2(2) 11.3(1) / 11.0(2) 14.5(1) / 13.6(2) 16.1(1) / 15.1(2)
Power input Heating Nom. kW 2.55(1) / 3.17(2) 3.26(1) / 4.04(2) 3.92(1) / 4.75(2) 2.63(1) / 3.24(2) 3.42(1) / 4.21(2) 3.82(1) / 4.69(2)
COP 4.39(1) / 3.25(2) 4.29(1) / 3.24(2) 4.08(1) / 3.20(2) 4.30(1) / 3.39(2) 4.24(1) / 3.22(2) 4.20(1) / 3.22(2)
Space heating Average General SCOP 2.86 2.82 2.92 2.90 2.86 2.96 MARINE TYPES
climate ŋs (Seasonal space % 112 110 114 113 111 115
water outlet heating efficiency)
55°C Seasonal space heating eff. class A+
Average General SCOP 2.99 3.23 3.29 3.08 3.34 3.33
climate water ŋs (Seasonal space % 117 126 129 120 131 130
outlet 35°C heating efficiency)
Seasonal space heating eff. class A A+ A A+
Indoor Unit EHBH 11CBV 16CBV 16CBV 11CBV 16CBV 16CBV CHILLERS
Casing Colour White
Material Precoated sheet metal
Dimensions Unit HeightxWidthxDepth mm 890x480x344
Weight Unit kg 41.0 42.0 41.0 42.0
Operation range Heating Water side Min.~Max. °C 10 ~55.0
Domestic Water side Min.~Max. °C 25~80
hot water FAN COIL UNITS
Sound power level Nom. dBA 41.0 44.0 41.0 44.0
Sound pressure level Nom. dBA 27.0 30.0 27.0 30.0
Outdoor Unit ERHQ/ERHQ 011BV3 014BV3 016BV3 011BW1 014BW17 016BW1
Dimensions Unit HeightxWidthxDepth mm 1,170x900x320 1,345x900x320
Weight Unit kg 102 108
Compressor Quantity 1
Type Hermetically sealed scroll compressor AIR HANDLING UNITS
Operation range Cooling Min.~Max. °CDB 10.0~46.0
Domestic hot water Min.~Max. °CDB -20 ~35
Refrigerant Type R-410A
GWP 2,087.5
Charge kg 2.7 3.0 2.95 3.0
Charge TCO2Eq 5.6 6.3
Control Expansion valve (electronic type)
Sound power level Heating Nom. dBA 64 66 64 60 66 REFRIGERATION
Cooling Nom. dBA 64 66 69 64 66 69
Sound pressure Heating Nom. dBA 49 51 53 51 50 52
level Cooling Nom. dBA 50 52 54 50 50 54
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1~/50/230 W1/3N~/50/400
Current Recommended fuses A 32 20
(1) Cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) Cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C )
(3) Contains fluorinated greenhouse gases CONTROL SYSTEMS
