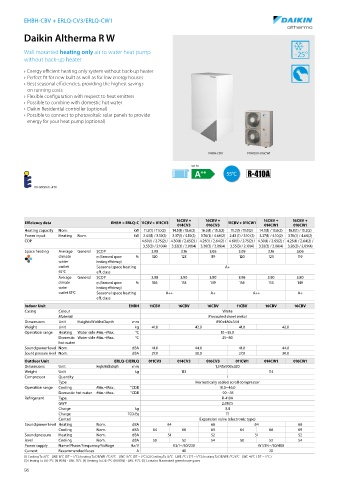

Page 98 - General Catalogue

EHBH-CBV + ERLQ-CV3/ERLQ-CW1

Daikin Altherma R W

Wall mounted heating only air to water heat pump
without back-up heater

› Energy efficient heating only system without back-up heater
› Perfect fit for new built as well as for low energy houses
› Best seasonal efficiencies, providing the highest savings
on running costs
› Flexible configuration with respect to heat emitters
› Possible to combine with domestic hot water
› Daikin Residential controller (optional)
› Possible to connect to photovoltaïc solar panels to provide
energy for your heat pump (optional)

EHBH-CBV ERHQ011-016CW1
A +++
up to
A ++ 55°C

A +
011-1W0068 78
A

B

16CBV + 16CBV + 16CBV + 16CBV +
Efficiency data EHBH + ERLQ-C 11CBV + 011CV3 014CV3 C 016CV3 11CBV + 011CW1 014CW1 016CW1
Heating capacity Nom. kW 11.2(1) / 11.0(2) 14.5(1) / 13.6(2) 16.0(1) / 15.2(2) 11.2(1) / 11.0(2) 14.5(1) / 13.6(2) 16.0(1) / 15.2(2)
Power input Heating Nom. kW 2.43(1) / 3.10(2) 3.37(1) / 4.10(2) D 3.76(1) / 4.66(2) 2.43 (1) / 3.10 (2) 3.37(1) / 4.10(2) 3.76(1) / 4.66(2)
COP 4.60(1) / 2.75(2) / 4.30(1) / 2.65(2) / 4.25(1) / 2.64(2) / 4.60(1) / 2.75(2) / 4.30(1) / 2.65(2) / 4.25(1) / 2.64(2) /
E
3.55(3) / 2.10(4) 3.32(3) / 2.08(4) 3.26(3) / 2.09(4) 3.55(3) / 2.10(4) 3.32(3) / 2.08(4) 3.26(3) / 2.09(4)
Space heating Average General SCOP 3.09 3.16 3.06 3.09 3.16 3.06
climate ŋs (Seasonal space % 120 123 F 119 120 123 119
water heating efficiency)
outlet Seasonal space heating A+
55°C eff. class G
Average General SCOP 3.98 3.90 3.80 3.98 3.90 3.80
climate ŋs (Seasonal space % 156 153 149 156 153 149
water heating efficiency)
outlet 35°C Seasonal space heating A++ A+ A++ A+
eff. class
Indoor Unit EHBH 11CBV 16CBV 16CBV 11CBV 16CBV 16CBV
Casing Colour White
Material Precoated sheet metal
Dimensions Unit HeightxWidthxDepth mm 890x480x344
Weight Unit kg 41.0 42.0 41.0 42.0
Operation range Heating Water side Min.~Max. °C 10 ~55.0
Domestic Water side Min.~Max. °C 25~80
hot water
Sound power level Nom. dBA 41.0 44.0 41.0 44.0
Sound pressure level Nom. dBA 27.0 30.0 27.0 30.0
Outdoor Unit ERLQ-C/ERLQ 011CV3 014CV3 016CV3 011CW1 014CW1 016CW1
Dimensions Unit HeightxWidthxDepth mm 1,345x900x320
Weight Unit kg 113 114
Compressor Quantity 1
Type Hermetically sealed scroll compressor
Operation range Cooling Min.~Max. °CDB 10.0~46.0
Domestic hot water Min.~Max. °CDB -20 ~35
Refrigerant Type R-410A
GWP 2,087.5
Charge kg 3.4
Charge TCO2Eq 7.1
Control Expansion valve (electronic type)
Sound power level Heating Nom. dBA 64 66 64 66
Cooling Nom. dBA 64 66 69 64 66 69
Sound pressure Heating Nom. dBA 51 52 51 52
level Cooling Nom. dBA 50 52 54 50 52 54
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1~/50/230 W1/3N~/50/400
Current Recommended fuses A 40 20
(1) Cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) Cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C )
(3) Heating Ta DB -7°C (RH85%) - LWC 35°C (4) Heating Ta DB -7°C (RH85%) - LWC 45°C (5) Contains fluorinated greenhouse gases
