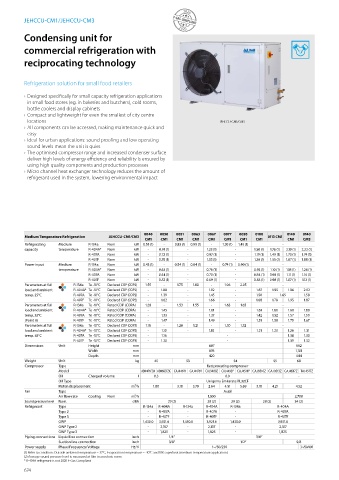

JEHCCU-CM1/JEHCCU-CM3

Condensing unit for

commercial refrigeration with
reciprocating technology

Refrigeration solution for small food retailers
› Designed specifically for small capacity refrigeration applications
in small food stores (eg. in bakeries and butchers), cold rooms,
bottle coolers and display cabinets
› Compact and lightweight for even the smallest of city centre
locations JEHCCU-CM1/CM3
› All components can be accessed, making maintenance quick and
easy
› Ideal for urban applications: sound proofing and low operating
sound levels mean the unit is quiet
› The optimised compressor range and increased condenser surface
deliver high levels of energy efficiency and reliability is ensured by
using high quality components and production processes
› Micro channel heat exchanger technology reduces the amount of
refrigerant used in the system, lowering environmental impact

0040 0050 0051 0063 0067 0077 0095 0100 0140 0140
Medium Temperature Refrigeration JEHCCU-CM1/CM3 0113 CM1
CM1 CM1 CM1 CM1 CM1 CM1 CM1 CM1 CM1 CM3
Refrigerating Medium R-134a Nom kW 0.55 (1) - 0.83 (1) 0.99 (1) - 1.20 (1) 1.49 (1) -
capacity temperature R-404A* Nom kW - 0.91 (1) - 1.23 (1) - 1.50 (1) 1.76 (1) 2.19 (1) 2.22 (1)
R-407A Nom kW - 0.72 (1) - 0.97 (1) - 1.19 (1) 1.49 (1) 1.73 (1) 1.74 (1)
R-407F Nom kW - 0.78 (1) - 1.03 (1) - 1.26 (1) 1.55 (1) 1.87 (1) 1.88 (1)
Power input Medium R-134a Nom kW 0.43 (1) - 0.54 (1) 0.64 (1) - 0.74 (1) 0.90 (1) -
temperature R-404A* Nom kW - 0.63 (1) - 0.76 (1) - 0.93 (1) 1.10 (1) 1.18 (1) 1.24 (1)
R-407A Nom kW - 0.54 (1) - 0.70 (1) - 0.84 (1) 0.98 (1) 1.11 (1) 1.16 (1)
R-407F Nom kW - 0.53 (1) - 0.69 (1) - 0.83 (1) 0.98 (1) 1.07 (1) 1.12 (1)
Parameters at full R-134a Te -10°C Declared COP (COP2) 1.55 - 1.75 1.80 - 1.96 2.05 -
load and ambient R-404A* Te -10°C Declared COP (COP2) - 1.88 - 1.92 - 1.87 1.95 1.96 2.02
temp. 25°C R-407A Te -10°C Declared COP (COP2) - 1.39 - 1.45 - 1.50 1.65 1.58
R-407F Te -10°C Declared COP (COP2) - 1.62 - 1.66 - 1.68 1.78 1.95 1.87
Parameters at full R-134a Te -10°C Rated COP (COPA) 1.28 - 1.53 1.55 - 1.63 1.65 -
load and ambient R-404A* Te -10°C Rated COP (COPA) - 1.45 - 1.61 - 1.61 1.60 1.68 1.80
temp. 32°C R-407A Te -10°C Rated COP (COPA) - 1.33 - 1.37 - 1.42 1.52 1.57 1.50
(Point A) R-407F Te -10°C Rated COP (COPA) - 1.47 - 1.49 - 1.51 1.58 1.75 1.67
Parameters at full R-134a Te -10°C Declared COP (COP3) 1.18 - 1.20 1.21 - 1.30 1.32 -
load and ambient R-404A* Te -10°C Declared COP (COP3) - 1.10 - 1.18 - 1.21 1.20 1.26 1.31
temp. 43°C R-407A Te -10°C Declared COP (COP3) - 1.16 - 1.38 1.30
R-407F Te -10°C Declared COP (COP3) - 1.20 - 1.39 1.32
Dimensions Unit Height mm 607 662
Width mm 876 1,101
Depth mm 420 444
Weight Unit kg 45 53 54 55 68
Compressor Type Reciprocating compressor
Model AE4440Y-FZ1A AE4460Z-FZ1C CAJ4461Y CAJ4476Y CAJ9480Z CAJ4492Y CAJ4511Y CAJ9510Z CAJ9513Z CAJ4517Z TAJ4517Z
Oil Charged volume l 0.3 0.9 -
Oil Type Uniqema Emkarate RL32CF
Piston displacement m³/h 1.80 3.18 3.79 2.64 4.51 5.69 3.18 4.21 4.52
Fan Type Axial
Air flow rate Cooling Nom m³/h 1,300 2,700
Sound pressure level Nom. dBA 29 (2) 28 (2) 29 (2) 28 (2) 34 (2)
Refrigerant Type R-134a R-404A R-134a R-404A R-134a R-404A
Type 2 - R-407A - R-407A - R-407A
Type 3 - R-407F - R-407F - R-407F
GWP 1,430.0 3,921.6 1,430.0 3,921.6 1,430.0 3,921.6
GWP Type 2 - 2,107 - 2,107 - 2,107
GWP Type 3 - 1,825 - 1,825 - 1,825
Piping connections Liquid line connection inch 1/4“ 3/8“
Suction line connection inch 3/8“ 1/2“ 5/8
Power supply Phase/Frequency/Voltage Hz/V 1~/50/230 3~/50/400
(1) Refer to condition: Outside ambient temperature = 32°C, Evaporation temperature = -10°C and 10K superheat (medium temperature application)
(2) Average sound pressure level is measured at 10m in anechoic room
* R-404A refrigerant is not 2020 F-Gas Compliant
