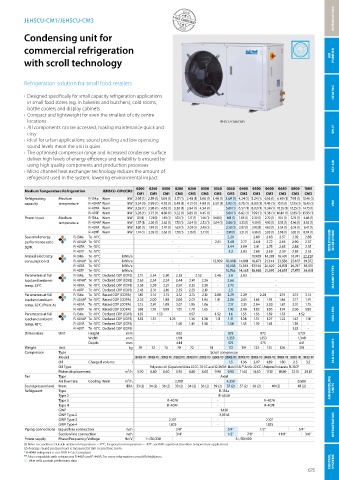

JEHSCU-CM1/JEHSCU-CM3

Condensing unit for

commercial refrigeration
with scroll technology AIR PURIFIER

Refrigeration solution for small food retailers
HEATING
› Designed specifically for small capacity refrigeration applications
in small food stores (eg. in bakeries and butchers), cold rooms,
bottle coolers and display cabinets
› Compact and lightweight for even the smallest of city centre
locations JEHSCU-CM1/CM3
› All components can be accessed, making maintenance quick and SPLIT
easy
› Ideal for urban applications: sound proofing and low operating
sound levels mean the unit is quiet
› The optimised compressor range and increased condenser surface
deliver high levels of energy efficiency and reliability is ensured by
using high quality components and production processes SKY AIR
› Micro channel heat exchanger technology reduces the amount of
refrigerant used in the system, lowering environmental impact

0200 0250 0300 0200 0250 0300 0350 0360 0400 0500 0600 0680 0800 1000
Medium Temperature Refrigeration JEHSCU-CM1/CM3
CM1 CM1 CM1 CM3 CM3 CM3 CM3 CM3 CM3 CM3 CM3 CM3 CM3 CM3
Refrigerating Medium R-134a Nom kW 2.05 (1) 2.59 (1) 3.09 (1) 2.17 (1) 2.48 (1) 3.06 (1) 3.48 (1) 3.69 (1) 4.24 (1) 5.24 (1) 6.16 (1) 6.89 (1) 7.95 (1) 10.40 (1)
capacity temperature R-404A* Nom kW 3.54 (1) 3.99 (1) 4.92 (1) 3.49 (1) 4.21 (1) 4.89 (1) 5.50 (1) 5.92 (1) 6.70 (1) 8.03 (1) 9.45 (1) 10.15 (1) 12.95 (1) 16.45 (1) VRV
R-407A Nom kW 3.39 (1) 3.98 (1) 4.65 (1) 3.36 (1) 3.94 (1) 4.54 (1) - 5.61 (1) 6.57 (1) 8.03 (1) 9.24 (1) 10.35 (1) 12.55 (1) 14.75 (1)
R-407F Nom kW 3.26 (1) 3.73 (1) 4.50 (1) 3.22 (1) 3.85 (1) 4.45 (1) - 5.61 (1) 6.62 (1) 7.99 (1) 9.36 (1) 10.40 (1) 12.65 (1) 15.95 (1)
Power input Medium R-134a Nom kW 1.11 (1) 1.21 (1) 1.45 (1) 1.03 (1) 1.17 (1) 1.46 (1) 1.68 (1) 1.61 (1) 1.85 (1) 2.30 (1) 2.70 (1) 3.15 (1) 3.74 (1) 4.86 (1)
temperature R-404A* Nom kW 1.57 (1) 2.00 (1) 2.62 (1) 1.70 (1) 2.04 (1) 2.52 (1) 3.04 (1) 2.88 (1) 3.33 (1) 4.39 (1) 4.92 (1) 5.53 (1) 5.96 (1) 8.62 (1)
R-407A Nom kW 1.60 (1) 1.99 (1) 2.47 (1) 1.63 (1) 2.03 (1) 2.45 (1) - 2.58 (1) 2.97 (1) 3.93 (1) 4.62 (1) 5.54 (1) 6.24 (1) 8.41 (1)
R-407F Nom kW 1.74 (1) 2.09 (1) 2.66 (1) 1.78 (1) 2.16 (1) 2.71 (1) - 2.91 (1) 3.21 (1) 4.36 (1) 5.03 (1) 5.98 (1) 6.13 (1) 8.84 (1)
Seasonal energy R-134a Te -10°C - 2.29 - 2.69 2.63 2.57 2.92 2.88
performance ratio R-404A* Te -10°C - 2.61 3.48 2.77 2.64 2.72 2.65 2.90 2.57 VENTILATION & BID- DLE AIR CURTAINS
SEPR R-407A Te -10°C - 3.44 3.09 2.81 2.75 2.65 2.88 2.35
R-407F Te -10°C - 3.2 2.83 2.60 2.69 2.59 2.83 2.53
Annual electricity R-134a Te -10°C kWh/a - 11,969 14,381 16,491 16,741 22,226
consumption Q R-404A* Te -10°C kWh/a - 12,939 10,448 14,881 18,673 21,344 23,536 27,407 39,372
R-407A Te -10°C kWh/a - 10,033 13,054 17,546 20,622 24,031 26,747 38,515
R-407F Te -10°C kWh/a - 10,766 14,365 18,883 21,395 24,655 27,475 38,831
Parameters at full R-134a Te -10°C Declared COP (COP2) 2.15 2.54 2.50 2.55 2.52 2.46 2.8 2.83 - MARINE TYPES
load and ambient R-404A* Te -10°C Declared COP (COP2) 2.65 2.54 2.24 2.44 2.41 2.26 - 2.66 -
temp. 25°C R-407A Te -10°C Declared COP (COP2) 2.55 2.38 2.21 2.50 2.32 2.20 - 2.72 -
R-407F Te -10°C Declared COP (COP2) 2.43 2.31 2.16 2.35 2.25 2.10 - 2.5 -
Parameters at full R-134a Te -10°C Rated COP (COPA) 1.85 2.14 2.13 2.12 2.13 2.10 2.08 2.29 2.29 2.28 2.19 2.13 2.14
load and ambient R-404A* Te -10°C Rated COP (COPA) 2.25 2.00 1.88 2.06 2.07 1.94 1.81 2.06 2.01 1.83 1.92 1.84 2.17 1.91
temp. 32°C (Point A) R-407A Te -10°C Rated COP (COPA) 2.13 2.01 1.89 2.07 1.95 1.86 - 2.17 2.21 2.04 2.00 1.87 2.01 1.75
R-407F Te -10°C Rated COP (COPA) 1.88 1.79 1.69 1.81 1.79 1.65 - 1.93 2.06 1.83 1.86 1.74 2.06 1.80
Parameters at full R-134a Te -10°C Declared COP (COP3) 1.35 1.53 1.57 1.52 1.6 1.55 1.56 1.59 1.53 1.52 CHILLERS
load and ambient R-404A* Te -10°C Declared COP (COP3) 1.53 1.33 1.25 1.36 1.28 1.11 1.31 1.28 1.15 1.27 1.22 1.47 1.18
temp. 43°C R-407A Te -10°C Declared COP (COP3) - 1.48 1.45 1.38 - 1.48 1.43 1.39 1.43 - 1.38 -
R-407F Te -10°C Declared COP (COP3) - 1.52 -
Dimensions Unit Height mm 662 872 872 1,727
Width mm 1,101 1,353 1,353 1,348
Depth mm 444 575 575 641
Weight Unit kg 70 72 74 70 72 74 112 119 123 125 126 218
Compressor Type Scroll compressor FAN COIL UNITS
Model ZB15KQE-PFJ ZB19KQE-PFJ ZB21KQE-PFJ ZB15KQE-TFD ZB19KQE-TFD ZB21KQE-TFD ZB26KQE-TFD ZB26KQE-TFD ZB29KQE-TFD ZB38KQE-TFD ZB45KQE-TFD ZB48KQE-TFD ZB58KCE-TFD ZB76KCE-TFD
Oil Charged volume l - 1.5 1.36 2.07 1.89 1.80 2.5 3.2
Oil Type Polyester oil (Copeland Ultra 22 CC. 32 CC and 32-3MAF. Mobil EAL™ Arctic 22 CC. Uniqem Emkarate RL32CF
Piston displacement m³/h 5.90 6.80 8.60 5.90 6.80 8.60 9.90 9.90 11.40 14.40 17.10 18.80 22.10 29.10
Fan Type Axial
Air flow rate Cooling Nom m³/h 2,700 4,250 - 8,500
Sound pressure level Nom. dBA 33 (2) 34 (2) 36 (2) 33 (2) 34 (2) 36 (2) 39 (2) 37 (2) 37 (2) 38 (2) 40 (2) 43 (2) AIR HANDLING UNITS
Refrigerant Type R-134a
Type 2 R-404A
Type 3 R-407A - R-407A
Type 4 R-407F - R-407F
GWP 1,430
GWP Type 2 3,921.6
GWP Type 3 2,107 - 2,107
GWP Type 4 1,825 - 1,825 REFRIGERATION
Piping connections Liquid line connection inch 3/8“ 3/4" 1/2“ 3/4“
Suction line connection inch 3/4“ 1/2" 7/8“ 1 1/8“ 3/8“
Power supply Phase/Frequency/Voltage Hz/V 1~/50/230 3~/50/400
(1) Refer to condition: Outside ambient temperature = 32°C, Evaporation temperature = -10°C and 10K superheat (medium temperature application)
(2) Average sound pressure level is measured at 10m in anechoic room
* R-404A refrigerant is not 2020 F-Gas Compliant
** Also compatible with refrigerants R-448A and R-449A. For more information consult RefrigXpress
Blue cells contain preliminary data CONTROL SYSTEMS
