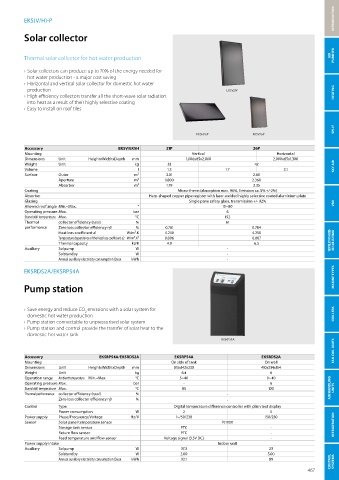

EKS(V/H)-P

Solar collector

Thermal solar collector for hot water production AIR PURIFIER

› Solar collectors can produce up to 70% of the energy needed for
hot water production - a major cost saving
› Horizontal and vertical solar collector for domestic hot water
production EKSV21P
› High efficiency collectors transfer all the short-wave solar radiation HEATING
into heat as a result of their highly selective coating
› Easy to install on roof tiles

SPLIT
EKSH26P EKSV26P

Accessory EKSV/EKSH 21P 26P
Mounting Vertical Horizontal
Dimensions Unit HeightxWidthxDepth mm 1,006x85x2,000 2,000x85x1,300
Weight Unit kg 33 42 SKY AIR
Volume l 1.3 1.7 2.1
Surface Outer m² 2.01 2.60
Aperture m² 1.800 2.360
Absorber m² 1.79 2.35
Coating Micro-therm (absorption max. 96%, Emission ca. 5% +/-2%)
Absorber Harp-shaped copper pipe register with laser-welded highly selective coated aluminium plate
Glazing Single pane safety glass, transmission +/- 92%
Allowed roof angle Min.~Max. ° 15~80 VRV
Operating pressure Max. bar 6
Stand still temperature Max. °C 192
Thermal collector efficiency (ηcol) % 61
performance Zero loss collector efficiency η0 % 0.781 0.784
Heat loss coefficient a1 W/m².K 4.240 4.250
Temperature dependence of the heat loss coefficient a2 W/m².K² 0.006 0.007 VENTILATION & BID- DLE AIR CURTAINS
Thermal capacity kJ/K 4.9 6.5
Auxiliary Solpump W -
Solstandby W -
Annual auxiliary electricity consumption Qaux kWh -

EKSRDS2A/EKSRPS4A MARINE TYPES

Pump station

› Save energy and reduce CO emissions with a solar system for
2
domestic hot water production CHILLERS
› Pump station connectable to unpressurised solar system
› Pump station and control provide the transfer of solar heat to the
domestic hot water tank
EKSRPS4A
FAN COIL UNITS

Accessory EKSRPS4A/EKSRDS2A EKSRPS4A EKSRDS2A
Mounting On side of tank On wall
Dimensions Unit HeightxWidthxDepth mm 815x142x230 410x314x154
Weight Unit kg 6.4 6
Operation range Ambient temperature Min.~Max. °C 5~40 0~40
Operating pressure Max. bar - 6
Stand still temperature Max. °C 85 120 AIR HANDLING UNITS
Thermal performance collector efficiency (ηcol) % -

Zero loss collector efficiency η0 % -
Control Type Digital temperature difference controller with plain text display
Power consumption W 2 5
Power supply Phase/Frequency/Voltage Hz/V 1~/50/230 /50/230
Sensor Solar panel temperature sensor Pt1000
Storage tank sensor PTC - REFRIGERATION
Return flow sensor PTC -
Feed temperature and flow sensor Voltage signal (3.5V DC) -
Power supply intake Indoor unit
Auxiliary Solpump W 37.3 23
Solstandby W 2.00 5.00
Annual auxiliary electricity consumption Qaux kWh 92.1 89 CONTROL SYSTEMS
