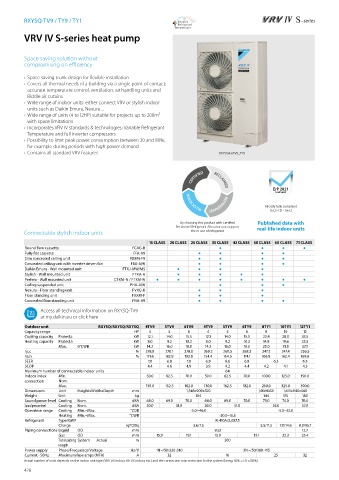

RXYSQ-TV9 / TY9 / TY1

VRV IV S-series heat pump

Space saving solution without
compromising on efficiency

› Space saving trunk design for flexible installation
› Covers all thermal needs of a building via a single point of contact:
accurate temperature control, ventilation, air handling units and
Biddle air cutains
› Wide range of indoor units: either connect VRV or stylish indoor
units such as Daikin Emura, Nexura ...
› Wide range of units (4 to 12HP) suitable for projects up to 200m2
with space limitations
› Incorporates VRV IV standards & technologies: Variable Refrigerant
Temperature and full inverter compressors
› Possibility to limit peak power consumption between 30 and 80%,
for example during periods with high power demand
› Contains all standard VRV features RXYSQ4-6TV9_TY9

CERTIFIED RECLAIMED

ErP 2021
COMPLIANT
ALLOCATION REFRIGERANT Already fully compliant

to LOT 21 - Tier 2
By choosing this product with Certified Published data with
Reclaimed Refrigerant Allocation you support real-life indoor units
Connectable stylish indoor units the re-use of refrigerant

15 CLASS 20 CLASS 25 CLASS 35 CLASS 42 CLASS 50 CLASS 60 CLASS 71 CLASS
Round flow cassette FCAG-B
Fully flat cassette FFA-A9
Slim concealed ceiling unit FDXM-F9
Concealed ceiling unit with inverter driven fan FBA-A(9)
Daikin Emura - Wall mounted unit FTXJ-MW/MS
Stylish - Wall mounted unit FTXA-A
Perfera - Wall mounted unit CTXM-N / FTXM-N
Ceiling suspended unit FHA-A(9)
Nexura - Floor standing unit FVXG-K
Floor standing unit FVXM-F
Concealed floorstanding unit FNA-A9

Access all technical information on RXYSQ-TV9
at my.daikin.eu or click here
Outdoor unit RXYSQ/RXYSQ/RXYSQ 4TV9 5TV9 6TV9 4TY9 5TY9 6TY9 8TY1 10TY1 12TY1
Capacity range HP 4 5 6 4 5 6 8 10 12
Cooling capacity Prated,c kW 12.1 14.0 15.5 12.1 14.0 15.5 22.4 28.0 33.5
Heating capacity Prated,h kW 8.0 9.2 10.2 8.0 9.2 10.2 14.9 19.6 23.5
Max. 6°CWB kW 14.2 16.0 18.0 14.2 16.0 18.0 25.0 31.5 37.5
ηs,c % 278.9 270.1 278.0 269.2 260.5 268.3 247.3 247.4 256.5
ηs,h % 171.6 182.9 192.8 154.4 164.5 174.1 165.8 162.4 169.6
SEER 7.0 6.8 7.0 6.8 6.6 6.8 6.3 6.5
SCOP 4.4 4.6 4.9 3.9 4.2 4.4 4.2 4.1 4.3
Maximum number of connectable indoor units 64
Indoor index Min. 50.0 62.5 70.0 50.0 62.5 70.0 100.0 125.0 150.0
connection Nom. -
Max. 130.0 162.5 182.0 130.0 162.5 182.0 260.0 325.0 390.0
Dimensions Unit HeightxWidthxDepth mm 1,345x900x320 1,430x940x320 1,615x940x460
Weight Unit kg 104 144 175 180
Sound power level Cooling Nom. dBA 68.0 69.0 70.0 68.0 69.0 70.0 73.0 74.0 76.0
Sound pressure level Cooling Nom. dBA 50.0 51.0 50.0 51.0 55.0 57.0
Operation range Cooling Min.~Max. °CDB -5.0~46.0 -5.0~52.0
Heating Min.~Max. °CWB -20.0~15.5
Refrigerant Type/GWP R-410A/2,087.5
Charge kg/TCO2Eq 3.6/7.5 5.5/11.5 7.0/14.6 8.0/16.7
Piping connections Liquid OD mm 9.52 12.7
Gas OD mm 15.9 19.1 15.9 19.1 22.2 25.4
Total piping System Actual m 300
length
Power supply Phase/Frequency/Voltage Hz/V 1N~/50/220-240 3N~/50/380-415
Current - 50Hz Maximum fuse amps (MFA) A 32 16 25 32
Actual number of units depends on the indoor unit type (VRV DX indoor, RA DX indoor, etc.) and the connection ratio restriction for the system (being; 50% ≤ CR ≤130%).
