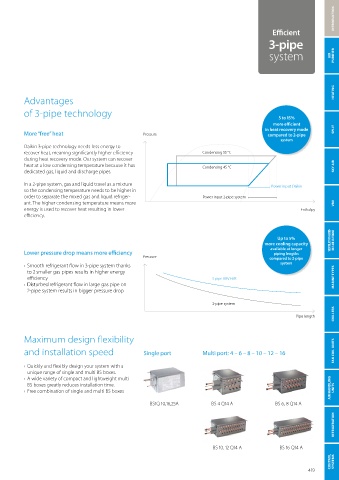

INTRODUCTION

Efficient
3-pipe

system AIR PURIFIER

HEATING
Advantages

of 3-pipe technology 5 to 15%
more efficient
in heat recovery mode SPLIT
More “free” heat Pressure compared to 2-pipe
system
Daikin 3-pipe technology needs less energy to
recover heat, meaning significantly higher efficiency Condensing 55 °C
during heat recovery mode. Our system can recover
heat at a low condensing temperature because it has Condensing 45 °C SKY AIR
dedicated gas, liquid and discharge pipes.

In a 2-pipe system, gas and liquid travel as a mixture Power input Daikin
so the condensing temperature needs to be higher in
order to separate the mixed gas and liquid refriger- Power input 2-pipe system
ant. The higher condensing temperature means more VRV
energy is used to recover heat resulting in lower Enthalpy
efficiency.

Up to 5% VENTILATION & BID- DLE AIR CURTAINS
more cooling capacity
available at longer
Lower pressure drop means more efficiency piping lengths
Pressure compared to 2-pipe
› Smooth refrigerant flow in 3-pipe system thanks system
to 2 smaller gas pipes results in higher energy
efficiency 3-pipe VRV H/R MARINE TYPES
› Disturbed refrigerant flow in large gas pipe on
2-pipe system results in bigger pressure drop

2-pipe system
CHILLERS
Pipe length

Maximum design flexibility

and installation speed Single port Multi port: 4 – 6 – 8 – 10 – 12 – 16 FAN COIL UNITS

› Quickly and flexibly design your system with a
unique range of single and multi BS boxes.
› A wide variety of compact and lightweight multi
BS boxes greatly reduces installation time. UNITS
› Free combination of single and multi BS boxes AIR HANDLING

BS1Q 10,16,25A BS 4 Q14 A BS 6, 8 Q14 A
REFRIGERATION

BS 10, 12 Q14 A BS 16 Q14 A
CONTROL SYSTEMS
