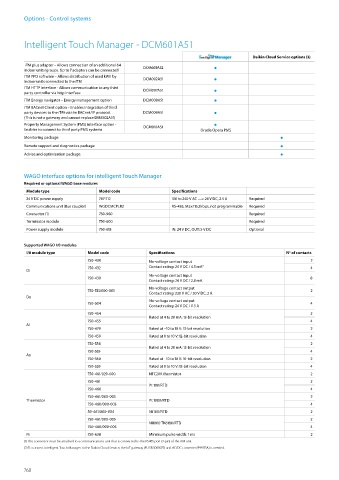

Options - Control systems

Intelligent Touch Manager - DCM601A51

Daikin Cloud Service options (2)
iTM plus adapter – Allows connection of an additional 64 •
indoor units/groups. Up to 7 adapters can be connected DCM601A52
iTM PPD software – Allows distribution of used kWh by •
indoor units connected to the iTM DCM002A51
iTM HTTP interface - Allows communication to any third •
party controller via http interface DCM007A51
iTM Energy navigator – Energy management option DCM008A51 •
iTM BACnet Client option – Enables integration of third
party devices to the iTM via the BACnet/IP protocol. DCM009A51 •
(This is not a gateway and cannot replace DMS502A51)
Property Management System (PMS) interface option - •
Enables to connect to third party PMS systems DCM010A51 Oracle Opera PMS
Monitoring package •
Remote support and diagnostics package •
Advise and optimisation package •

WAGO interface options for intelligent Touch Manager
Required or optional WAGO base modules
Module type Model code Specifications
24 V DC power supply 787-712 100 to 240 V AC —> 24 V DC, 2.5 A Required
Communications unit (Bus coupler) WGDCMCPLR2 RS-485, Max:115.2kbps, not programmable Required
Connector (1) 750-960 Required
Terminator module 750-600 Required
Power supply module 750-613 IN: 24 V DC, OUT: 5 V DC Optional

Supported WAGO I/0 modules
I/0 module type Model code Specifications N° of contacts
750-400 No-voltage contact input 2
750-432 Contact rating: 24 V DC / 4.5 mA“ 4
Di
No-voltage contact input
750-430 8
Contact rating: 24 V DC / 2.8 mA
No-voltage contact output
750-513/000-001 Contact rating: 230 V AC / 30 V DC, 2 A 2
Do
750-504 No-voltage contact output 4
Contact rating: 24 V DC / 0.5 A
750-454 2
Rated at 4 to 20 mA: 12-bit resolution
750-455 4
Ai
750-479 Rated at −10 to 10 V: 13-bit resolution 2
750-459 Rated at 0 to 10 V: 12-bit resolution 4
750-554 2
Rated at 4 to 20 mA: 12-bit resolution
750-555 4
Ao
750-560 Rated at −10 to 10 V: 10-bit resolution 2
750-559 Rated at 0 to 10 V: 12-bit resolution 4
750-461/020-000 NTC20K thermistor 2
750-461 2
Pt 100/RTD
750-460 4
750-461/000-003 2
Thermistor Pt 1000/RTD
750-460/000-003 4
50-461/000-004 Ni 100/RTD 2
750-461/000-005 2
Ni1000 TK6180/RTD
750-460/000-005 4
Pi 750-638 Minimum pulse width: 1 ms 2
(1) This connector must be attached to a communications unit that is connected to the RS485 port (2-pin) of the iTM unit.
(2) To connect intelligent Touch Manager to the Daikin Cloud Service, the IoT gateway (EU.SB.5000072) and AC/DC converter (999175A) is needed.
