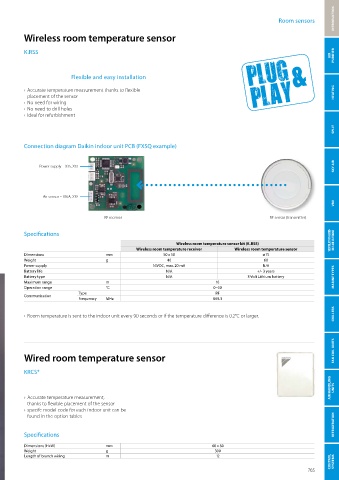

Page 767 - General Catalogue

INTRODUCTION

Room sensors

Wireless room temperature sensor

K.RSS
AIR PURIFIER

Flexible and easy installation

› Accurate temperature measurement thanks to flexible HEATING
placement of the sensor
› No need for wiring
› No need to drill holes
› Ideal for refurbishment
SPLIT

Connection diagram Daikin indoor unit PCB (FXSQ example)

Power supply – X35, X13 SKY AIR

Air sensor – X16A, X19
VRV

RF receiver RF sensor (transmitter)

Specifications

Wireless room temperature sensor kit (K.RSS) VENTILATION & BID- DLE AIR CURTAINS
Wireless room temperature receiver Wireless room temperature sensor
Dimensions mm 50 x 50 ø 75
Weight g 40 60
Power supply 16VDC, max. 20 mA N/A
Battery life N/A +/- 3 years
Battery type N/A 3 Volt Lithium battery MARINE TYPES
Maximum range m 10
Operation range °C 0~50
Type RF
Communication
Frequency MHz 868.3
CHILLERS
› Room temperature is sent to the indoor unit every 90 seconds or if the temperature difference is 0.2°C or larger.

FAN COIL UNITS

Wired room temperature sensor

KRCS*
AIR HANDLING UNITS

› Accurate temperature measurement,
thanks to flexible placement of the sensor
› specifc model code for each indoor unit can be
REFRIGERATION
found in the option tables

Specifications

Dimensions (HxW) mm 60 x 50
Weight g 300
CONTROL SYSTEMS
Length of branch wiring m 12
765
