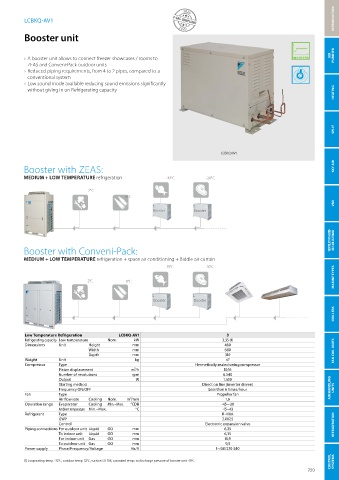

Page 711 - General Catalogue

INTRODUCTION

LCBKQ-AV1

Booster unit

AIR PURIFIER
› A booster unit allows to connect freezer showcases / rooms to
ZEAS and Conveni-Pack outdoor units
› Reduced piping requirements, from 4 to 2 pipes, compared to a
conventional system
› Low sound mode available reducing sound emissions significantly
HEATING
without giving in on Refrigerating capacity

SPLIT

LCBKQ3AV1

Booster with ZEAS: SKY AIR
MEDIUM + LOW TEMPERATURE refrigeration -19° C -20° C

2° C
8° C
VRV
Booster Booster

VENTILATION & BID- DLE AIR CURTAINS

Booster with Conveni-Pack:
MEDIUM + LOW TEMPERATURE refrigeration + space air conditioning + Biddle air curtain
-19°C -20°C
MARINE TYPES
2°C 8°C

Booster Booster
CHILLERS

Low Temperature Refrigeration LCBKQ-AV1 3
Refrigerating capacity Low temperature Nom. kW 3,35 (1)
Dimensions Unit Height mm 480
Width mm 680 FAN COIL UNITS
Depth mm 310
Weight Unit kg 47
Compressor Type Hermetically sealed swing compressor
Piston displacement m³/h 10,16
Number of revolutions rpm 6.540
Output W 1.300
Starting method Direct on line (inverter driven)
Frequency ON/OFF Less than 6 times/hour AIR HANDLING UNITS
Fan Type Propeller fan
Air flow rate Cooling Nom. m³/min 1,6
Operation range Evaporator Cooling Min.~Max. °CDB -45~-20
Ambient temperature Min.~Max. °C -15~43
Refrigerant Type R-410A
GWP 2.087,5
Control Electronic expansion valve REFRIGERATION
Piping connections For outdoor unit Liquid OD mm 6,35
To indoor unit Liquid OD mm 6,35
For indoor unit Gas OD mm 15,9
To outdoor unit Gas OD mm 9,5
Power supply Phase/Frequency/Voltage Hz/V 1~/50/220-240
CONTROL SYSTEMS
(1) Evaporating temp. -35°C; outdoor temp. 32°C; suction SH 10K; saturated temp. to discharge pressure of booster unit -10°C
