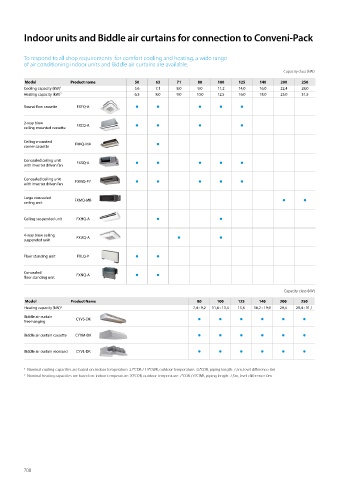

Indoor units and Biddle air curtains for connection to Conveni-Pack

To respond to all shop requirements for comfort cooling and heating, a wide range
of air conditioning indoor units and Biddle air curtains are available.
Capacity class (kW)
Model Product name 50 63 71 80 100 125 140 200 250
Cooling capacity (kW) 1 5,6 7,1 8,0 9,0 11,2 14,0 16,0 22,4 28,0
Heating capacity (kW) 2 6,3 8,0 9,0 10,0 12,5 16,0 18,0 25,0 31,5
    
Round flow cassette FXFQ-A

2-way blow FXCQ-A    
ceiling mounted cassette
Ceiling mounted FXKQ-MA 
corner cassette

Concealed ceiling unit     
with inverter driven fan FXSQ-A

Concealed ceiling unit FXMQ-P7     
with inverter driven fan

Large concealed FXMQ-MB  
ceiling unit

Ceiling suspended unit FXHQ-A  

4-way blow ceiling FXUQ-A  
suspended unit

Floor standing unit FXLQ-P  

Concealed FXNQ-A  
floor standing unit

Capacity class (kW)

Model Product Name 80 100 125 140 200 250
Heating capacity (kW) 2 7,4 - 9,2 11,6 - 13,4 15,6 16,2 - 19,9 29,4 29,4 - 31,1
Biddle air curtain CYVS-DK      
free hanging

Biddle air curtain cassette CYVM-DK      

Biddle air curtain recessed CYVL-DK      

1 Nominal cooling capacities are based on: indoor temperature: 27°CDB / 19°CWB, outdoor temperature: 35°CDB, piping length: 7,5m, level difference: 0m
2 Nominal heating capacities are based on: indoor temperature: 20°CDB, outdoor temperature: 7°CDB / 6°CWB, piping length: 7,5m, level difference: 0m
