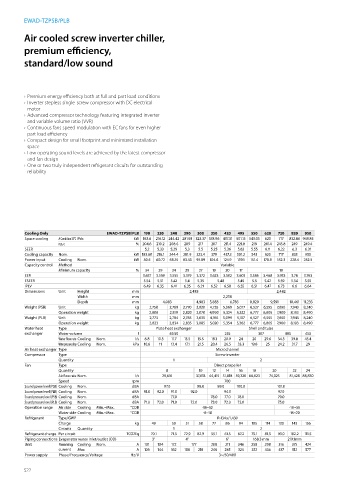

EWAD-TZPSB/PLB

Air cooled screw inverter chiller,

premium efficiency,
standard/low sound

› Premium energy efficiency both at full and part load conditions
› Inverter stepless single-screw compressor with DC electrical
motor
› Advanced compressor technology featuring integrated inverter
and variable volume ratio (VVR)
› Continuous fans speed modulation with EC fans for even higher
part load efficiency
› Compact design for small footprint and minimized installation
space
› Low operating sound levels are achieved by the latest compressor
and fan design
› One or two truly independent refrigerant circuits for outstanding
reliability

Cooling Only EWAD-TZPSB/PLB 190 220 240 290 300 350 420 495 550 620 720 820 950
Space cooling A Condition 35°C Pdc kW 183.6 216.12 244.42 281.93 323.37 378.96 437.31 501.15 543.03 620 717 832.86 949.85
ηs,c % 204.6 210.2 208.6 209 217 207 211.4 221.8 219 241.4 245.8 249 249.4
SEER 5.2 5.33 5.29 5.3 5.5 5.25 5.36 5.62 5.55 6.11 6.22 6.3 6.31
Cooling capacity Nom. kW 183.60 216.1 244.4 281.9 323.4 379 437.3 501.2 543 620 717 833 950
Power input Cooling Nom. kW 50.5 60.72 68.74 83.43 95.89 104.6 124.9 139.1 151.4 178.8 182.3 220.4 252.5
Capacity control Method Variable
Minimum capacity % 34 29 34 29 27 19 20 17 10
EER 3.637 3.559 3.555 3.379 3.372 3.623 3.502 3.603 3.586 3.468 3.933 3.78 3.763
ESEER 5.54 5.51 5.42 5.4 5.35 5.48 5.45 5.5 5.42 5.59 5.54 5.55
IPLV 6.49 6.35 6.41 6.35 6.21 6.52 6.58 6.55 6.51 6.47 6.73 6.6 6.64
Dimensions Unit Height mm 2,483 2,482
Width mm 2,258
Depth mm 4,083 4,983 5,883 6,783 8,820 9,591 10,461 11,233
Weight (PSB) Unit kg 2,758 2,769 2,770 3,020 4,735 5,069 5,077 6,527 6,555 7,650 7,943 8,240
Operation weight kg 2,808 2,819 2,820 3,070 4,990 5,324 5,332 6,777 6,805 7,900 8,193 8,490
Weight (PLB) Unit kg 2,773 2,784 2,785 3,035 4,765 5,099 5,107 6,527 6,555 7,650 7,943 8,240
Operation weight kg 2,823 2,834 2,835 3,085 5,020 5,354 5,362 6,777 6,805 7,900 8,193 8,490
Water heat Type Plate heat exchanger Shell and tube
exchanger Water volume l 49.50 255 307 485 453
Water flow rate Cooling Nom. l/s 8.8 10.3 11.7 13.5 15.5 18.1 20.9 24 26 29.6 34.3 39.8 45.4
Water pressure drop Cooling Nom. kPa 10.6 11 13.4 17.1 21.5 20.4 26.5 33.3 19.8 25 24.2 31.7 29
Air heat exchanger Type Microchannel
Compressor Type Screw inverter
Quantity 1 2
Fan Type Direct propeller
Quantity 8 10 12 14 16 18 20 22 24
Air flow rate Nom. l/s 29,610 37,013 44,415 51,818 59,220 66,623 74,025 81,428 88,830
Speed rpm 700
Sound power level (PSB) Cooling Nom. dBA 97.0 98.0 99.0 100.0 101.0
Sound power level (PLB) Cooling Nom. dBA 91.0 92.0 91.0 92.0 94.0 97.0
Sound pressure level (PSB) Cooling Nom. dBA 77.0 78.0 77.0 78.0 79.0
Sound pressure level (PLB) Cooling Nom. dBA 71.0 72.0 71.0 72.0 73.0 72.0 73.0 75.0
Operation range Air side Cooling Min.~Max. °CDB -18~52 -18~55
Water side Cooling Min.~Max. °CDB -8~18 -15~20
Refrigerant Type/GWP R-134a/1,430
Charge kg 49 50 51 58 77 86 94 105 114 130 143 156
Circuits Quantity 1 2
Refrigerant charge Per circuit TCO2Eq 70.1 71.5 72.9 82.9 55.1 61.5 67.2 75.1 81.5 93.0 102.2 111.5
Piping connections Evaporator water inlet/outlet (OD) 3" 4" 6” 168.3 mm 219.1mm
Unit Running Cooling Nom. A 101 104 172 177 208 211 346 258 298 316 375 424
current Max A 126 144 162 188 218 246 285 324 352 436 437 512 577
Power supply Phase/Frequency/Voltage Hz/V 3~/50/400
