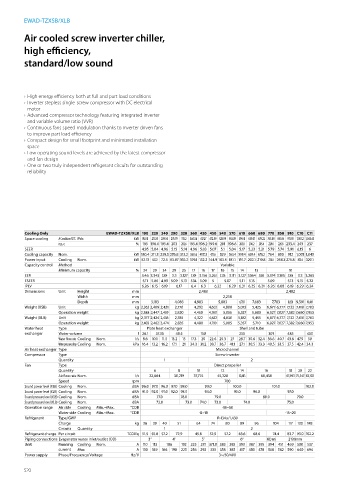

EWAD-TZXSB/XLB

Air cooled screw inverter chiller,

high efficiency,
standard/low sound

› High energy efficiency both at full and part load conditions
› Inverter stepless single-screw compressor with DC electrical
motor
› Advanced compressor technology featuring integrated inverter
and variable volume ratio (VVR)
› Continuous fans speed modulation thanks to inverter driven fans
to improve part load efficiency
› Compact design for small footprint and minimized installation
space
› Low operating sound levels are achieved by the latest compressor
and fan design
› One or two truly independent refrigerant circuits for outstanding
reliability

Cooling Only EWAD-TZXSB/XLB 190 220 240 290 320 360 420 450 540 570 610 660 680 770 850 910 C10 C11
Space cooling A Condition 35°C Pdc kW 180.41 211.34 239.54 276.79 313.2 360.56 417.27 472.59 528.99 563.39 599.41 639.37 678.22 763.88 850.16 911.93 1,001.2 1,045.43
ηs,c % 195 198.6 195.4 203 202.6 195.4 198.2 199.8 201 198.6 203.8 206.2 205.4 228.6 226.6 233.4 243 237
SEER 4.95 5.04 4.96 5.15 5.14 4.96 5.03 5.07 5.1 5.04 5.17 5.23 5.21 5.79 5.74 5.91 6.15 6
Cooling capacity Nom. kW 180.4 211.3 239.5 276.8 313.2 360.6 417.3 472.6 529 563.4 599.4 639.4 678.2 764 850 912 1,001 1,045
Power input Cooling Nom. kW 52.13 63.22 72.5 83.87 100.2 109.1 132.2 144.9 163.5 181.1 191.7 202.1 219.8 226.5 266.1 275.8 303.4 320.1
Capacity control Method Variable
Minimum capacity % 34 29 34 29 25 17 16 17 16 15 14 13 10
EER 3.46 3.343 3.304 3.3 3.127 3.304 3.156 3.261 3.236 3.111 3.127 3.164 3.085 3.374 3.195 3.306 3.3 3.265
ESEER 5.11 5.06 4.99 5.09 5.13 5.14 5.09 5 5.07 5.11 5.15 5.09 5.13 5.15 5.22
IPLV 6.26 6.15 6.19 6.17 6.4 6.3 6.22 6.29 6.31 6.25 6.21 6.26 6.08 6.19 6.29 6.24
Dimensions Unit Height mm 2,483 2,482
Width mm 2,258
Depth mm 3,183 4,083 4,983 5,883 6,783 7,683 7,783 8,820 9,591 10,461
Weight (XSB) Unit kg 2,362 2,409 2,421 2,770 4,292 4,602 4,800 5,072 5,425 6,677 6,777 7,132 7,410 7,703
Operation weight kg 2,388 2,447 2,459 2,820 4,450 4,760 5,055 5,327 5,680 6,927 7,027 7,382 7,660 7,953
Weight (XLB) Unit kg 2,377 2,424 2,436 2,785 4,322 4,632 4,830 5,102 5,455 6,677 6,777 7,132 7,410 7,703
Operation weight kg 2,403 2,462 2,474 2,835 4,480 4,790 5,085 5,357 5,710 6,927 7,027 7,382 7,660 7,953
Water heat Type Plate heat exchanger Shell and tube
exchanger Water volume l 26.1 37.35 49.5 158 255 301 485 453
Water flow rate Cooling Nom. l/s 8.6 10.1 11.5 13.2 15 17.3 20 22.6 25.3 27 28.7 30.6 32.4 36.6 40.7 43.6 47.9 50
Water pressure drop Cooling Nom. kPa 16.4 13.2 16.2 17.1 21 34.3 31.2 39.7 36.7 41.1 27.1 30.5 33.3 40.5 33.5 37.5 42.4 34.3
Air heat exchanger Type Microchannel
Compressor Type Screw inverter
Quantity 1 2
Fan Type Direct propeller
Quantity 6 8 10 12 14 16 18 20 22
Air flow rate Nom. l/s 22,664 30,219 37,774 45,328 52,883 60,438 67,993 75,547 83,102
Speed rpm 700
Sound power level (XSB) Cooling Nom. dBA 96.0 97.0 96.0 97.0 98.0 99.0 100.0 101.0 102.0
Sound power level (XLB) Cooling Nom. dBA 91.0 92.0 91.0 92.0 93.0 94.0 95.0 96.0 97.0
Sound pressure level (XSB) Cooling Nom. dBA 77.0 78.0 79.0 80.0 79.0
Sound pressure level (XLB) Cooling Nom. dBA 72.0 73.0 74.0 73.0 74.0 75.0
Operation range Air side Cooling Min.~Max. °CDB -18~50
Water side Cooling Min.~Max. °CDB -8~18 -15~20
Refrigerant Type/GWP R-134a/1,430
Charge kg 36 39 40 51 64 74 80 89 96 104 117 130 143
Circuits Quantity 1 2
Refrigerant charge Per circuit TCO2Eq 51.5 55.8 57.2 72.9 45.8 52.9 57.2 63.6 68.6 74.4 83.7 93.0 102.2
Piping connections Evaporator water inlet/outlet (OD) 3" 4" 5" 6” 168.3 mm 219.1mm
Unit Running Cooling Nom. A 110 113 186 192 225 231 371.0 383 392 390 387 395 394 451 469 500 537
current Max A 130 149 166 198 225 256 292 333 358 385 417 450 478 508 562 590 640 694
Power supply Phase/Frequency/Voltage Hz/V 3~/50/400
