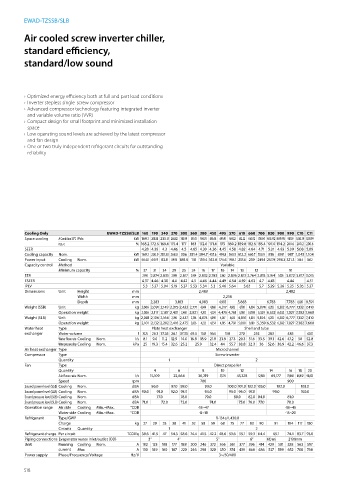

EWAD-TZSSB/SLB

Air cooled screw inverter chiller,

standard efficiency,
standard/low sound

› Optimized energy efficiency both at full and part load conditions
› Inverter stepless single-screw compressor
› Advanced compressor technology featuring integrated inverter
and variable volume ratio (VVR)
› Compact design for small footprint and minimized installation
space
› Low operating sound levels are achieved by the latest compressor
and fan design
› One or two truly independent refrigerant circuits for outstanding
reliability

Cooling Only EWAD-TZSSB/SLB 160 190 240 270 300 360 380 450 495 570 610 660 700 820 900 990 C10 C11
Space cooling A Condition 35°C Pdc kW 169.1 200.88 235.3 268.82 305.99 351.41 394.74 455.64 499.81 569.52 612.22 660.72 700.94 815.92 889.95 987.19 1,045.39 1,103.99
ηs,c % 168.2 172.6 169.4 175.4 177 183 172.6 171.4 175 180.2 189.8 182.6 185.4 197.4 194.2 200.6 200.2 200.6
SEER 4.28 4.39 4.3 4.46 4.5 4.65 4.39 4.36 4.45 4.58 4.82 4.64 4.71 5.01 4.93 5.09 5.08 5.09
Cooling capacity Nom. kW 169.1 200.9 235.30 268.8 306 351.4 394.7 455.6 499.8 569.5 612.2 660.7 700.9 816 890 987 1,045 1,104
Power input Cooling Nom. kW 56.48 69.9 83.0 89.94 108.6 118 139.4 163.8 174.6 198.1 217.6 239 249.1 257.9 296.1 321.3 346.4 366.2
Capacity control Method Variable
Minimum capacity % 37 31 34 29 25 24 16 17 16 14 13 12 10
EER 2.995 2.874 2.835 2.989 2.817 2.954 2.832 2.783 2.862 2.876 2.813 2.764 2.813 3.164 3.005 3.072 3.017 3.015
ESEER 4.37 4.46 4.30 4.4 4.42 4.5 4.46 4.44 4.49 4.54 4.59 4.63 4.7 4.43 4.44 4.51
IPLV 5.3 5.27 5.04 5.19 5.37 5.53 5.34 5.3 5.46 5.64 5.62 5.7 5.29 5.26 5.25 5.26 5.27
Dimensions Unit Height mm 2,483 2,482
Width mm 2,258
Depth mm 2,283 3,183 4,083 4,983 5,883 6,783 7,783 8,820 9,591
Weight (SSB) Unit kg 2,066 2,091 2,149 2,375 2,422 2,771 4,044 4,060 4,317 4,603 4,780 4,804 5,074 6,282 6,382 6,777 7,132 7,410
Operation weight kg 2,086 2,117 2,187 2,401 2,460 2,821 4,202 4,224 4,475 4,761 5,050 5,059 5,329 6,532 6,632 7,027 7,382 7,660
Weight (SLB) Unit kg 2,081 2,106 2,164 2,390 2,437 2,786 4,074 4,090 4,347 4,633 4,810 4,834 5,104 6,282 6,382 6,777 7,132 7,410
Operation weight kg 2,101 2,132 2,202 2,416 2,475 2,836 4,232 4,254 4,505 4,791 5,080 5,089 5,359 6,532 6,382 7,027 7,382 7,660
Water heat Type Plate heat exchanger Shell and tube
exchanger Water volume l 20.25 26.1 37.35 26.1 37.35 49.5 158 164 158 270 255 283 485 453
Water flow rate Cooling Nom. l/s 8.1 9.6 11.2 12.9 14.6 16.8 18.9 21.8 23.9 27.3 29.3 31.6 33.5 39.1 42.6 47.2 50 52.8
Water pressure drop Cooling Nom. kPa 25 19.3 15.4 32.6 25.2 25.9 32.4 44 55.7 38.8 32.3 36 52.6 36.9 42.2 46.6 37.3
Air heat exchanger Type Microchannel
Compressor Type Screw inverter
Quantity 1 2
Fan Type Direct propeller
Quantity 4 6 8 10 12 14 16 18 20
Air flow rate Nom. l/s 15,109 22,664 30,219 37,774 45,328 52,883 69,177 79,060 88,942 98,825
Speed rpm 700 900
Sound power level (SSB) Cooling Nom. dBA 96.0 97.0 98.0 99.0 100.0 101.0 102.0 105.0 102.0 103.0
Sound power level (SLB) Cooling Nom. dBA 90.0 91.0 92.0 93.0 94.0 95.0 96.0 97.0 99.0 100.0
Sound pressure level (SSB) Cooling Nom. dBA 77.0 78.0 79.0 80.0 82.0 84.0 81.0
Sound pressure level (SLB) Cooling Nom. dBA 71.0 72.0 73.0 74.0 75.0 76.0 77.0 78.0
Operation range Air side Cooling Min.~Max. °CDB -18~47 -18~45
Water side Cooling Min.~Max. °CDB -8~18 -15~20
Refrigerant Type/GWP R-134a/1,430.0
Charge kg 27 29 33 38 41 52 58 59 68 75 77 83 90 91 104 117 130
Circuits Quantity 1 2
Refrigerant charge Per circuit TCO2Eq 38.6 41.5 47 54.3 58.6 74.4 41.5 42.2 48.6 53.6 55.1 59.3 64.4 65.1 74.4 83.7 93.0
Piping connections Evaporator water inlet/outlet (OD) 3" 4" 5" 6” 168.3 mm 219.1mm
Unit Running Cooling Nom. A 102 123 188 177 188 200 246 372 366 361 377 396 414 429 501 528 563 597
current Max A 130 149 160 187 220 246 298 320 350 374 439 466 486 537 599 652 708 768
Power supply Phase/Frequency/Voltage Hz/V 3~/50/400
