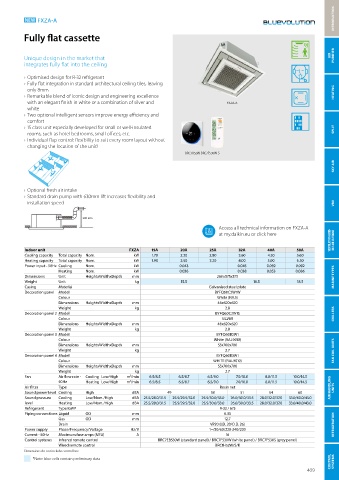

NEW FXZA-A INTRODUCTION

Fully flat cassette

Unique design in the market that AIR PURIFIER
integrates fully flat into the ceiling

› Optimised design for R-32 refrigerant
› Fully flat integration in standard architectural ceiling tiles, leaving
only 8mm
› Remarkable blend of iconic design and engineering excellence HEATING
with an elegant finish in white or a combination of silver and FXZA-A
white
› Two optional intelligent sensors improve energy efficiency and
comfort
› 15 class unit especially developed for small or well-insulated SPLIT
rooms, such as hotel bedrooms, small offices, etc.
› Individual flap control: flexibility to suit every room layout without
changing the location of the unit!
BRC1H52W, BRC7F530W-S
SKY AIR

› Optional fresh air intake
› Standard drain pump with 630mm lift increases flexibility and
installation speed VRV

500 mm
Access all technical information on FXZA-A
VENTILATION & BID- DLE AIR CURTAINS
at my.daikin.eu or click here

Indoor unit FXZA 15A 20A 25A 32A 40A 50A
Cooling capacity Total capacity Nom. kW 1.70 2.20 2.80 3.60 4.50 5.60
Heating capacity Total capacity Nom. kW 1.90 2.50 3.20 4.00 5.00 6.30
Power input - 50Hz Cooling Nom. kW 0.043 0.045 0.059 0.092
Heating Nom. kW 0.036 0.038 0.053 0.086
Dimensions Unit HeightxWidthxDepth mm 260x575x575 MARINE TYPES
Weight Unit kg 15.5 16.5 18.5
Casing Material Galvanised steel plate
Decoration panel Model BYFQ60C2W1W
Colour White (N9.5)
Dimensions HeightxWidthxDepth mm 46x620x620
Weight kg 2.8
Decoration panel 2 Model BYFQ60C2W1S CHILLERS
Colour SILVER
Dimensions HeightxWidthxDepth mm 46x620x620
Weight kg 2.8
Decoration panel 3 Model BYFQ60B2W1
Colour White (RAL9010)
Dimensions HeightxWidthxDepth mm 55x700x700
Weight kg 2.7 FAN COIL UNITS
Decoration panel 4 Model BYFQ60B3W1
Colour WHITE (RAL9010)
Dimensions HeightxWidthxDepth mm 55x700x700
Weight kg 2.7
Fan Air flow rate - Cooling Low/High m³/min 6.5/8.5 6.5/8.7 6.5/9.0 7.0/10.0 8.0/11.5 10.0/14.5
50Hz Heating Low/High m³/min 6.5/8.5 6.5/8.7 6.5/9.0 7.0/10.0 8.0/11.5 10.0/14.5
Air filter Type Resin net AIR HANDLING UNITS
Sound power level Cooling High dBA 49 50 51 54 60
Sound pressure Cooling Low/Nom./High dBA 25.5/28.0/31.5 25.5/29.5/32.0 25.5/30.0/33.0 26.0/30.0/33.5 28.0/32.0/37.0 33.0/40.0/43.0
level Heating Low/Nom./High dBA 25.5/28.0/31.5 25.5/29.5/32.0 25.5/30.0/33.0 26.0/30.0/33.5 28.0/32.0/37.0 33.0/40.0/43.0
Refrigerant Type/GWP R-32 / 675
Piping connections Liquid OD mm 6.35
Gas OD mm 12.7
Drain VP20 (I.D. 20/O.D. 26) REFRIGERATION
Power supply Phase/Frequency/Voltage Hz/V 1~/50/60/220-240/220
Current - 50Hz Maximum fuse amps (MFA) A 16
Control systems Infrared remote control BRC7EB530W (standard panel) / BRC7F530W (white panel) / BRC7F530S (grey panel)
Wired remote control BRC1H52W/S/K
Dimensions do not include control box
CONTROL SYSTEMS
*Note: blue cells contain preliminary data
