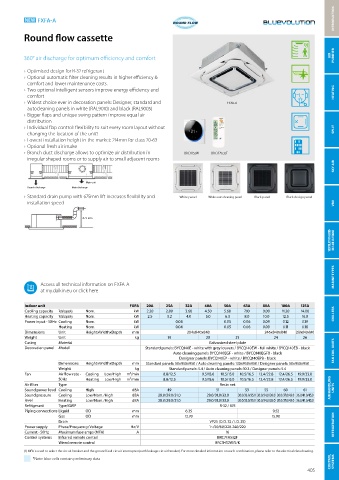

NEW FXFA-A INTRODUCTION

Round flow cassette

360° air discharge for optimum efficiency and comfort AIR PURIFIER

› Optimised design for R-32 refrigerant
› Optional automatic filter cleaning results in higher efficiency &
comfort and lower maintenance costs.
› Two optional intelligent sensors improve energy efficiency and
comfort HEATING
› Widest choice ever in decoration panels: Designer, standard and FXFA-A
autocleaning panels in white (RAL9010) and black (RAL9005)
› Bigger flaps and unique swing pattern improve equal air
distribution
› Individual flap control: flexibility to suit every room layout without SPLIT
changing the location of the unit!
› Lowest installation height in the market: 214mm for class 20-63
› Optional fresh air intake
› Branch duct discharge allows to optimize air distribution in BRC1H52W BRC7FA532F
irregular shaped rooms or to supply air to small adjacent rooms
SKY AIR

Main unit
Branch discharge Main discharge
› Standard drain pump with 675mm lift increases flexibility and White panel White auto cleaning panel Black panel Black design panel
installation speed VRV

675 mm

VENTILATION & BID- DLE AIR CURTAINS

MARINE TYPES

Access all technical information on FXFA-A
at my.daikin.eu or click here

Indoor unit FXFA 20A 25A 32A 40A 50A 63A 80A 100A 125A
Cooling capacity Total capacity Nom. kW 2.20 2.80 3.60 4.50 5.60 7.10 9.00 11.20 14.00
Heating capacity Total capacity Nom. kW 2.5 3.2 4.0 5.0 6.3 8.0 10.0 12.5 16.0 CHILLERS
Power input - 50Hz Cooling Nom. kW 0.04 0.05 0.06 0.09 0.12 0.19
Heating Nom. kW 0.04 0.05 0.06 0.09 0.11 0.18
Dimensions Unit HeightxWidthxDepth mm 204x840x840 246x840x840 288x840x840
Weight Unit kg 19 20 21 24 26
Casing Material Galvanised steel plate
Decoration panel Model Standard panels: BYCQ140E - white with grey louvers / BYCQ140EW - full white / BYCQ140EB - black
Auto cleaning panels BYCQ140EGF - white / BYCQ140EGFB - black FAN COIL UNITS
Designer panels: BYCQ140EP - white / BYCQ140EPB - black
Dimensions HeightxWidthxDepth mm Standard panels: 50x950x950 / Auto cleaning panels: 130x950x950 / Designer panels: 50x950x950
Weight kg Standard panels: 5.4 / Auto cleaning panels: 10.3 / Designer panels: 5.4
Fan Air flow rate - Cooling Low/High m³/min 8.8/12.5 9.5/13.6 10.5/15.0 10.5/16.5 12.4/22.8 12.4/26.5 19.9/33.0
50Hz Heating Low/High m³/min 8.8/12.5 9.5/13.6 10.5/15.0 10.5/16.5 12.4/22.8 12.4/26.5 19.9/33.0
Air filter Type Resin net
Sound power level Cooling High dBA 49 51 53 55 60 61 AIR HANDLING UNITS
Sound pressure Cooling Low/Nom./High dBA 28.0/29.0/31.0 29.0/31.0/33.0 30.0/33.0/35.0 30.0/34.0/38.0 30.0/37.0/43.0 36.0/41.0/45.0
level Heating Low/Nom./High dBA 28.0/29.0/31.0 29.0/31.0/33.0 30.0/33.0/35.0 30.0/34.0/38.0 30.0/37.0/43.0 36.0/41.0/45.0
Refrigerant Type/GWP R-32 / 675
Piping connections Liquid OD mm 6.35 9.52
Gas OD mm 12.70 15.90
Drain VP25 (O.D. 32 / I.D. 25)
Power supply Phase/Frequency/Voltage Hz/V 1~/50/60/220-240/220 REFRIGERATION
Current - 50Hz Maximum fuse amps (MFA) A 16
Control systems Infrared remote control BRC7FA532F
Wired remote control BRC1H52W/S/K
(1) MFA is used to select the circuit breaker and the ground fault circuit interrupter (earth leakage circuit breaker). For more detailed information on each combination, please refer to the electrical data drawing.
CONTROL SYSTEMS
*Note: blue cells contain preliminary data
