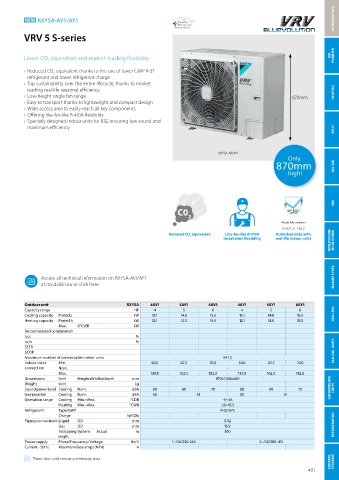

NEW RXYSA-AV1/AY1 INTRODUCTION

VRV 5 S-series

Lower CO equivalent and market-leading flexibility AIR PURIFIER
2
› Reduced CO equivalent thanks to the use of lower GWP R-32
2
refrigerant and lower refrigerant charge
› Top sustainability over the entire lifecycle, thanks to market
leading real-life seasonal efficiency
› Low-height single fan range 870mm HEATING
› Easy to transport thanks to lightweight and compact design
› Wide access area to easily reach all key components
› Offering like-for-like R-410A flexibility
› Specially designed indoor units for R32, ensuring low sound and
maximum efficiency
SPLIT

RXYSA-AV/AY1
Only
870mm SKY AIR
high!

VRV
ErP 2021
COMPLIANT
Already fully compliant
to LOT 21 - Tier 2
VENTILATION & BID- DLE AIR CURTAINS
Reduced CO equivalent Like-for-like R-410A Published data with
2
installation flexibility real-life indoor units

MARINE TYPES
Access all technical information on RXYSA-AV1/AY1
at my.daikin.eu or click here

Outdoor unit RXYSA 4AV1 5AV1 6AV1 4AY1 5AY1 6AY1
Capacity range HP 4 5 6 4 5 6
Cooling capacity Prated,c kW 12.1 14.0 15.5 12.1 14.0 15.5 CHILLERS
Heating capacity Prated,h kW 12.1 14.0 15.5 12.1 14.0 15.5
Max. 6°CWB kW
Recommended combination
ηs,c %
ηs,h %
SEER
SCOP FAN COIL UNITS
Maximum number of connectable indoor units 64 (1)
Indoor index Min. 50.0 62.5 70.0 50.0 62.5 70.0
connection Nom. -
Max. 130.0 162.5 182.0 130.0 162.5 182.0
Dimensions Unit HeightxWidthxDepth mm 870x1,100x460
Weight Unit kg
Sound power level Cooling Nom. dBA 68 69 70 68 69 70 AIR HANDLING UNITS
Sound pressure level Cooling Nom. dBA 50 51 50 51
Operation range Cooling Min.~Max. °CDB -5~46
Heating Min.~Max. °CWB -20~15.5
Refrigerant Type/GWP R-32/675
Charge kg/TCO2Eq
Piping connections Liquid OD mm 9.52
Gas OD mm 15.9 REFRIGERATION
Total piping System Actual m 300
length
Power supply Phase/Frequency/Voltage Hz/V 1~/50/220-240 3~/50/380-415
Current - 50Hz Maximum fuse amps (MFA) A
CONTROL SYSTEMS
*Note: blue cells contain preliminary data
