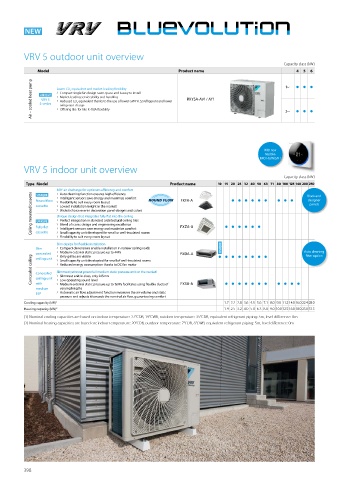

VRV 5 outdoor unit overview

Capacity class (kW)
Model Product name 4 5 6
Air – cooled heat pump UNIQUE Lower CO 2 equivalent and market-leading flexibility RXYSA-AV1 / AY1 3~   
1~
› Compact single fan design saves space and is easy to install
› Market-leading serviceability and handling
VRV 5
› Reduced CO 2 equivalent thanks to the use of lower GWP R-32 refrigerant and lower
S-series
refrigerant charge
  
› Offering like-for-like R-410A flexibility

With new
Madoka
BRC1H52W/S/K !
VRV 5 indoor unit overview
Capacity class (kW)
Type Model Product name 10 15 20 25 32 40 50 63 71 80 100 125 140 200 250
360° air discharge for optimum efficiency and comfort FXFA-A          Black and
› Auto cleaning function ensures high efficiency
Ceiling mounted cassette cassette Unique design that integrates fully flat into the ceiling panels
UNIQUE
› Intelligent sensors save energy and maximize comfort
designer
Round flow
› Flexibility to suit every room layout
› Lowest installation height in the market!
› Widest choice ever in decoration panel designs and colors
› Perfect integration in standard architectural ceiling tiles
UNIQUE
› Blend of iconic design and engineering excellence
Fully flat
› Intelligent sensors save energy and maximize comfort
cassette
› Small capacity unit developed for small or well-insulated rooms
› Flexibility to suit every room layout FXZA-A      
Slim design for flexible installation
Slim › Compact dimensions enable installation in narrow ceiling voids UNIQUE
concealed › Medium external static pressure up to 44Pa FXDA-A         Auto cleaning
filter option
Concealed ceiling Concealed Slimmest yet most powerfull medium static pressure unit on the market!
› Only grilles are visible
ceiling unit
› Small capacity unit developted for small of well-insulated rooms
› Reduced energy consumption thanks to DC fan motor
› Slimmest unit in class, only 245mm
ceiling unit
with
› Medium external static pressure up to 150Pa facilitates using flexible ducts of
medium › Low operating sound level FXSA-A           
varying lengths
ESP › Automatic air flow adjustment function measures the air volume and static
pressure and adjusts it towards the nominal air flow, guaranteeing comfort
Cooling capacity (kW) 1 1.7 2.2 2.8 3.6 4.5 5.6 7.1 8.0 9.0 11.2 14.0 16.0 22.4 28.0
Heating capacity (kW) 2 1.9 2.5 3.2 4.0 5.0 6.3 8.0 9.0 10.0 12.5 16.0 18.0 25.0 31.5
(1) Nominal cooling capacities are based on: indoor temperature: 27°CDB, 19°CWB, outdoor temperature: 35°CDB, equivalent refrigerant piping: 5m, level difference: 0m
(2) Nominal heating capacities are based on: indoor temperature: 20°CDB, outdoor temperature: 7°CDB, 6°CWB, equivalent refrigerant piping: 5m, level difference: 0m
