Page 120 - General Catalogue

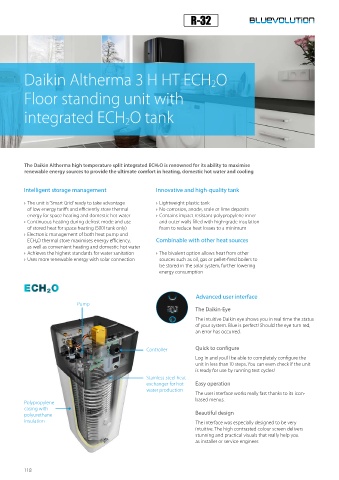

Daikin Altherma 3 H HT ECH 2O

Floor standing unit with

integrated ECH 2O tank

The Daikin Altherma high temperature split integrated ECH2O is renowned for its ability to maximise
renewable energy sources to provide the ultimate comfort in heating, domestic hot water and cooling

Intelligent storage management Innovative and high-quality tank

› The unit is ‘Smart Grid’ ready to take advantage › Lightweight plastic tank
of low energy tariffs and efficiently store thermal › No corrosion, anode, scale or lime deposits
energy for space heating and domestic hot water › Contains impact resistant polypropylene inner
› Continuous heating during defrost mode and use and outer walls filled with high-grade insulation
of stored heat for space heating (500l tank only) foam to reduce heat losses to a minimum
› Electronic management of both heat pump and
ECH 2O thermal store maximises energy efficiency, Combinable with other heat sources
as well as convenient heating and domestic hot water
› Achieves the highest standards for water sanitation › The bivalent option allows heat from other
› Uses more renewable energy with solar connection sources such as oil, gas or pellet-fired boilers to
be stored in the solar system, further lowering
energy consumption

Advanced user interface
Pump
The Daikin-Eye
The intuitive Daikin eye shows you in real time the status
of your system. Blue is perfect! Should the eye turn red,
an error has occurred.

Controller Quick to configure
Log in and you’ll be able to completely configure the
unit in less than 10 steps. You can even check if the unit
is ready for use by running test cycles!
Stainless steel heat
exchanger for hot Easy operation
water production
The user interface works really fast thanks to its icon-
based menus.
Polypropylene
casing with
polyurethane Beautiful design
insulation The interface was especially designed to be very
intuitive. The high contrasted colour screen delivers
stunning and practical visuals that really help you
as installer or service engineer.
