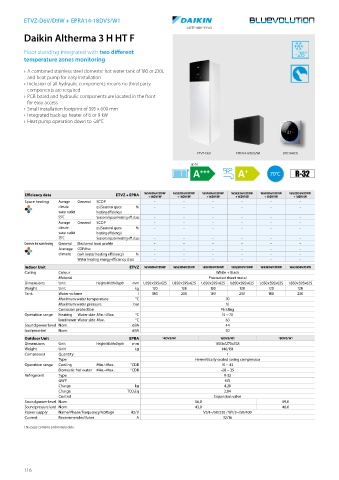

ETVZ-D6V/D9W + EPRA14-18DV3/W1

Daikin Altherma 3 H HT F

Floor standing integrated with two different
temperature zones monitoring

› A combined stainless steel domestic hot water tank of 180 or 230L
and heat pump for easy installation
› Inclusion of all hydraulic components means no third party
components are required
› PCB board and hydraulic components are located in the front
for easy access
› Small installation footprint of 595 x 600 mm
› Integrated back-up heater of 6 or 9 kW
› Heat pump operation down to -28°C

ETVZ-D6V EPRA14-18DV3/W1 BRC1HHDS

up to
70°C

Efficiency data ETVZ + EPRA 16S18D6V/D9W 16S23D6V/D9W 16S18D6V/D9W 16S23D6V/D9W 16S18D6V/D9W 16S23D6V/D9W
+ 14DV/W
+ 14DV/W
+ 18DV/W
+ 16DV/W
+ 16DV/W
+ 18DV/W
Space heating Average General SCOP - - - - - -
climate ŋs (Seasonal space % - - - - - -
water outlet heating efficiency)
55°C Seasonal space heating eff. class - - - - - -
Average General SCOP - - - - - -
climate ŋs (Seasonal space % - - - - - -
water outlet heating efficiency)
35°C Seasonal space heating eff. class - - - - - -
Domestic hot water heating General Declared load profile - - - - - -
Average COPdhw - - - - - -
climate ŋwh (water heating efficiency) % - - - - - -
Water heating energy efficiency class - - - - - -
Indoor Unit ETVZ 16S18D6V/D9W 16S23D6V/D9W 16S18D6V/D9W 16S23D6V/D9W 16S18D6V/D9W 16S23D6V/D9W
Casing Colour White + Black
Material Precoated sheet metal
Dimensions Unit HeightxWidthxDepth mm 1,650x595x625 1,850x595x625 1,650x595x625 1,850x595x625 1,650x595x625 1,850x595x625
Weight Unit kg 120 128 120 128 120 128
Tank Water volume l 180 230 180 230 180 230
Maximum water temperature °C 70
Maximum water pressure bar 10
Corrosion protection Pickling
Operation range Heating Water side Min.~Max. °C 15 ~ 70
Domestic hot water Water side Max. °C 63
Sound power level Nom. dBA 44
Sound pressure level Nom. dBA 30
Outdoor Unit EPRA 14DV3/W1 16DV3/W1 18DV3/W1
Dimensions Unit HeightxWidthxDepth mm 1003x1270x533
Weight Unit kg 146/151
Compressor Quantity 1
Type Hermetically sealed swing compressor
Operation range Cooling Min.~Max. °CDB 10 ~ 43
Domestic hot water Min.~Max. °CDB -28 ~ 35
Refrigerant Type R-32
GWP 675
Charge kg 4.20
Charge TCO 2Eq 2,84
Control Expansion valve
Sound power level Nom. 56,0 59,0
Sound pressure level Nom. 43,0 48,0
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1~/50/230 / W1/3~/50/400
Current Recommended fuses A 32/16
This page contains preliminary data.
