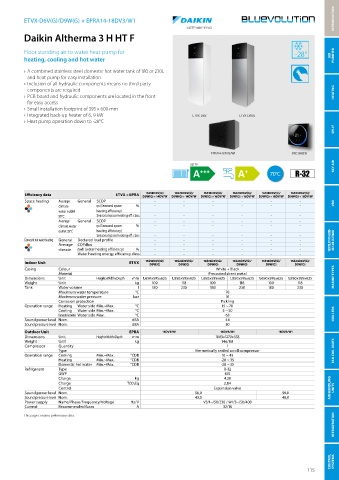

ETVX-D6V(G)/D9W(G) + EPRA14-18DV3/W1

Daikin Altherma 3 H HT F

Floor standing air to water heat pump for
heating, cooling and hot water AIR PURIFIER

› A combined stainless steel domestic hot water tank of 180 or 230L
and heat pump for easy installation
› Inclusion of all hydraulic components means no third party
components are required HEATING
› PCB board and hydraulic components are located in the front
for easy access
› Small installation footprint of 595 x 600 mm
› Integrated back-up heater of 6, 9 kW ETVX-D6V ETVX-D6VG
› Heat pump operation down to -28°C
SPLIT

EPRA14-18DV3/W1 BRC1HHDK
SKY AIR
up to
70°C

16S23D6V(G)/
16S18D6V(G)/
16S23D6V(G)/
16S18D6V(G)/
16S23D6V(G)/
16S18D6V(G)/
Efficiency data ETVX + EPRA D9W(G) + 14DV/W D9W(G) + 14DV/W D9W(G) + 16DV/W D9W(G) + 16DV/W D9W(G) + 18DV/W D9W(G) + 18DV/W
Space heating Average General SCOP - - - - - -
climate ŋs (Seasonal space % - - - - - - VRV
water outlet heating efficiency)
55°C Seasonal space heating eff. class - - - - - -
Average General SCOP - - - - - -
climate water ŋs (Seasonal space % - - - - - -
outlet 35°C heating efficiency)
Seasonal space heating eff. class - - - - - -
Domestic hot water heating General Declared load profile - - - - - - VENTILATION & BID- DLE AIR CURTAINS
Average COPdhw - - - - - -
climate ŋwh (water heating efficiency) % - - - - - -
Water heating energy efficiency class - - - - - -
Indoor Unit ETVX 16S18D6V(G)/ 16S23D6V(G)/ 16S18D6V(G)/ 16S23D6V(G)/ 16S18D6V(G)/ 16S23D6V(G)/
D9W(G)
D9W(G)
D9W(G)
D9W(G)
D9W(G)
D9W(G)
Casing Colour White + Black
Material Precoated sheet metal
Dimensions Unit HeightxWidthxDepth mm 1,650x595x625 1,850x595x625 1,650x595x625 1,850x595x625 1,650x595x625 1,850x595x625 MARINE TYPES
Weight Unit kg 109 118 109 118 109 118
Tank Water volume l 180 230 180 230 180 230
Maximum water temperature °C 70
Maximum water pressure bar 10
Corrosion protection Pickling
Operation range Heating Water side Min.~Max. °C 15 ~ 70
Cooling Water side Min.~Max. °C 5 ~ 50
Domestic hot water Water side Max. °C 63 CHILLERS
Sound power level Nom. dBA 44
Sound pressure level Nom. dBA 30
Outdoor Unit EPRA 14DV3/W1 16DV3/W1 18DV3/W1
Dimensions Unit HeightxWidthxDepth mm 1003x1270x533
Weight Unit kg 146/151
Compressor Quantity 1
Type Hermetically sealed scroll compressor FAN COIL UNITS
Operation range Cooling Min.~Max. °CDB 10 ~ 43
Heating Min.~Max. °CDB -28 ~ 35
Domestic hot water Min.~Max. °CDB -28 ~ 35
Refrigerant Type R-32
GWP 675
Charge kg 4.20
Charge TCO 2Eq 2,84
Control Expansion valve AIR HANDLING UNITS
Sound power level Nom. 56,0 59,0
Sound pressure level Nom. 43,0 48,0
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1~/50/230 / W1/3~/50/400
Current Recommended fuses A 32/16
REFRIGERATION
This page contains preliminary data.
