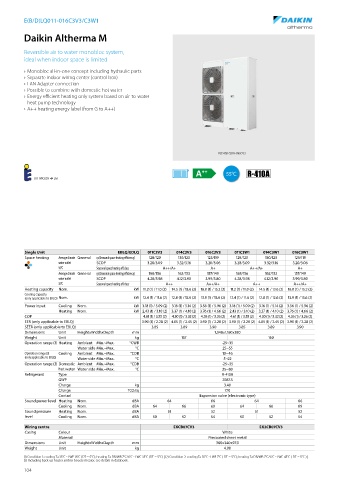

E(B/D)LQ011-016C3V3/C3W1

Daikin Altherma M

Reversible air to water monobloc system,
ideal when indoor space is limited

› Monobloc all-in-one concept including hydraulic parts
› Separate indoor wiring center (control box)
› LAN Adapter connection
› Possible to combine with domestic hot water
› Energy efficient heating only system based on air-to-water
heat pump technology
› A++ heating energy label (from G to A++)

E(D-B)LQ011-016CV3
A +++

A ++ 55°C
011-1W0259  261
A +
A

B
C

D

E
Single Unit EBLQ/EDLQ 011C3V3 014C3V3 016C3V3 011C3W1 014C3W1 016C3W1
Space heating Average climate General ŋs (Seasonal space heating efficiency) 128/120 130/123 F 125/119 128/120 130/123 125/119
water outlet SCOP 3.28/3.09 3.32/3.16 3.20/3.06 3.28/3.09 3.32/3.16 3.20/3.06
55°C Seasonal space heating eff. class A++/A+ G A+ A++/A+ A+
Average climate General ŋs (Seasonal space heating efficiency) 168/156 162/153 157/149 168/156 162/153 157/149
water outlet SCOP 4.28/3.98 4.12/3.90 3.99/3.80 4.28/3.98 4.12/3.90 3.99/3.80
35°C Seasonal space heating eff. class A++ A++/A+ A++ A++/A+
Heating capacity Nom. kW 11.2 (1) / 11.0 (2) 14.5 (1) / 13.6 (2) 16.0 (1) / 15.2 (2) 11.2 (1) / 11.0 (2) 14.5 (1) / 13.6 (2) 16.0 (1) / 15.2 (2)
Cooling capacity
(only applicable to EBLQ) Nom. kW 12.4 (1) / 11.6 (2) 12.8 (1) / 12.6 (2) 13.9 (1) / 13.6 (2) 12.4 (1) / 11.6 (2) 12.8 (1) / 12.6 (2) 13.9 (1) / 13.6 (2)
Power input Cooling Nom. kW 3.18 (1) / 5.09 (2) 3.16 (1) / 5.14 (2) 3.56 (1) / 5.96 (2) 3.18 (1) / 5.09 (2) 3.16 (1) / 5.14 (2) 3.56 (1) / 5.96 (2)
Heating Nom. kW 2.43 (1) / 3.10 (2) 3.37 (1) / 4.10 (2) 3.76 (1) / 4.66 (2) 2.43 (1) / 3.10 (2) 3.37 (1) / 4.10 (2) 3.76 (1) / 4.66 (2)
COP 4.61 (1) / 3.55 (2) 4.30 (1) / 3.32 (2) 4.26 (1) / 3.26 (2) 4.61 (1) / 3.55 (2) 4.30 (1) / 3.32 (2) 4.26 (1) / 3.26 (2)
EER (only applicable to EBLQ) 3.90 (1) / 2.28 (2) 4.05 (1) / 2.45 (2) 3.90 (1) / 2.28 (2) 3.90 (1) / 2.28 (2) 4.05 (1) / 2.45 (2) 3.90 (1) / 2.28 (2)
SEER (only applicable to EBLQ) 3.85 3.89 3.90 3.85 3.89 3.90
Dimensions Unit HeightxWidthxDepth mm 1,348x1,160x380
Weight Unit kg 157 160
Operation range (3) Heating Ambient Min.~Max. °CWB -25~35
Water side Min.~Max. °C 25~55
Operation range (3) Cooling Ambient Min.~Max. °CDB 10~46
(only applicable to EBLQ) Water side Min.~Max. °C 5~22
Operation range (3) Domestic Ambient Min.~Max. °CDB -25~35
hot water Water side Min.~Max. °C 25~80
Refrigerant Type R-410A
GWP 2087.5
Charge kg 3.40
Charge TCO2Eq 7.10
Control Expansion valve (electronic type)
Sound power level Heating Nom. dBA 64 66 64 66
Cooling Nom. dBA 64 66 69 64 66 69
Sound pressure Heating Nom. dBA 51 52 51 52
level Cooling Nom. dBA 50 52 54 50 52 54
Wiring centre EKCB07CV3 EK2CB07CV3
Casing Colour White
Material Precoated sheet metal
Dimensions Unit HeightxWidthxDepth mm 360x340x97.0
Weight Unit kg 4.00
(1) Condition 1: cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) | (2) Condition 2: cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C ) |
(3) Including back-up heater and/or booster heater, see details in databook.
