INTRODUCTION

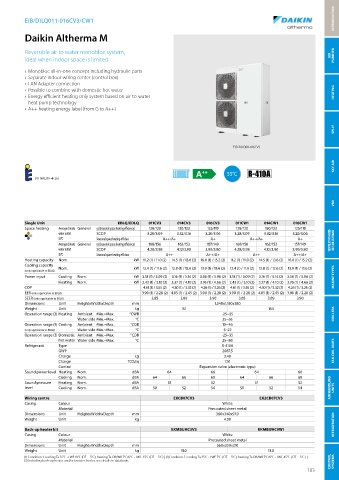

E(B/D)LQ011-016CV3/CW1

Daikin Altherma M

Reversible air to water monobloc system,
ideal when indoor space is limited AIR PURIFIER

› Monobloc all-in-one concept including hydraulic parts
› Separate indoor wiring center (control box)
› LAN Adapter connection
› Possible to combine with domestic hot water HEATING
› Energy efficient heating only system based on air-to-water
heat pump technology
› A++ heating energy label (from G to A++)

SPLIT

E(D-B)LQ011-016CV3
A +++ SKY AIR

A ++ 55°C
011-1W0259  261
A +
A

B VRV

Single Unit EBLQ/EDLQ 011CV3 014CV3 C 016CV3 011CW1 014CW1 016CW1
Space heating Average climate General ŋs (Seasonal space heating efficiency) 128/120 130/123 125/119 128/120 130/123 125/119
water outlet SCOP 3.28/3.09 3.32/3.16 D 3.20/3.06 3.28/3.09 3.32/3.16 3.20/3.06
55°C Seasonal space heating eff. class A++/A+ A+ A++/A+ A+ VENTILATION & BID- DLE AIR CURTAINS
162/153
Average climate General ŋs (Seasonal space heating efficiency) 168/156 4.12/3.90 E 157/149 168/156 162/153 157/149
water outlet SCOP 4.28/3.98 3.99/3.80 4.28/3.98 4.12/3.90 3.99/3.80
35°C Seasonal space heating eff. class A++ A++/A+ A++ A++/A+
Heating capacity Nom. kW 11.2 (1) / 11.0 (2) 14.5 (1) / 13.6 (2) F 16.0 (1) / 15.2 (2) 11.2 (1) / 11.0 (2) 14.5 (1) / 13.6 (2) 16.0 (1) / 15.2 (2)
Cooling capacity
Nom. kW 12.4 (1) / 11.6 (2) 12.8 (1) / 12.6 (2) 13.9 (1) / 13.6 (2) 12.4 (1) / 11.6 (2) 12.8 (1) / 12.6 (2) 13.9 (1) / 13.6 (2)
(only applicable to EBLQ) G
Power input Cooling Nom. kW 3.18 (1) / 5.09 (2) 3.16 (1) / 5.14 (2) 3.56 (1) / 5.96 (2) 3.18 (1) / 5.09 (2) 3.16 (1) / 5.14 (2) 3.56 (1) / 5.96 (2) MARINE TYPES
Heating Nom. kW 2.43 (1) / 3.10 (2) 3.37 (1) / 4.10 (2) 3.76 (1) / 4.66 (2) 2.43 (1) / 3.10 (2) 3.37 (1) / 4.10 (2) 3.76 (1) / 4.66 (2)
COP 4.61 (1) / 3.55 (2) 4.30 (1) / 3.32 (2) 4.26 (1) / 3.26 (2) 4.61 (1) / 3.55 (2) 4.30 (1) / 3.32 (2) 4.26 (1) / 3.26 (2)
EER (only applicable to EBLQ) 3.90 (1) / 2.28 (2) 4.05 (1) / 2.45 (2) 3.90 (1) / 2.28 (2) 3.90 (1) / 2.28 (2) 4.05 (1) / 2.45 (2) 3.90 (1) / 2.28 (2)
SEER (only applicable to EBLQ) 3.85 3.89 3.90 3.85 3.89 3.90
Dimensions Unit HeightxWidthxDepth mm 1,348x1,160x380
Weight Unit kg 151 154
Operation range (3) Heating Ambient Min.~Max. °CWB -25~35 CHILLERS
Water side Min.~Max. °C 25~55
Operation range (3) Cooling Ambient Min.~Max. °CDB 10~46
(only applicable to EBLQ) Water side Min.~Max. °C 5~22
Operation range (3) Domestic Ambient Min.~Max. °CDB -25~35
hot water Water side Min.~Max. °C 25~80
Refrigerant Type R-410A
GWP 2087.5 FAN COIL UNITS
Charge kg 3.40
Charge TCO2Eq 7.10
Control Expansion valve (electronic type)
Sound power level Heating Nom. dBA 64 66 64 66
Cooling Nom. dBA 64 66 69 64 66 69
Sound pressure Heating Nom. dBA 51 52 51 52
level Cooling Nom. dBA 50 52 54 50 52 54 AIR HANDLING UNITS

Wiring centre EKCB07CV3 EK2CB07CV3
Casing Colour White
Material Precoated sheet metal
Dimensions Unit HeightxWidthxDepth mm 360x340x97.0
Weight Unit kg 4.00

Back-up heater kit EKMBUHC3V3 EKMBUHC9W1 REFRIGERATION
Casing Colour White
Material Precoated sheet metal
Dimensions Unit HeightxWidthxDepth mm 560x250x210
Weight Unit kg 11.0 13.0
(1) Condition 1: cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) | (2)Condition 2: cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C ) |
(3) Including back-up heater and/or booster heater, see details in databook. CONTROL SYSTEMS
