ПОСМОТРЕТЬ ВСЕ ТЕХНИЧЕСКИЕ
ЧЕРТЕЖИ FXMQ-P7 НА MY.DAIKIN.EU

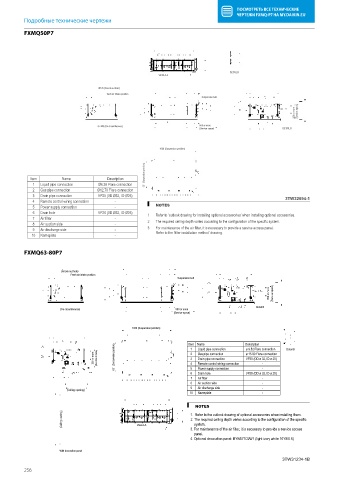

Подробные технические чертежи
FXMQ50P7
FXMQ50P7

DETAIL B
VIEW A-A

Ø125 (Knock out hole)
fresh air intake position
Suspension bolt

350 or more (Service space)

6 x M5 (On circumference) 500 or more
(Service space) DETAIL B

1038 (Suspension position)

631 (Suspension position)
Item Name Description
1 Liquid pipe connection Ø6.35 Flare connection
2 Gas pipe connection Ø12.70 Flare connection
3 Drain pipe connection VP25 (0D Ø32, ID Ø25) 3TW32694-1
4 Remote control wiring connection -
5 Power supply connection - NOTES
6 Drain hole VP20 (0D Ø32, ID Ø25) 1 Refer to ‘outlook drawing for installing optional accessories’ when installing optional accessories.
7 Air filter - 2 The required ceiling depth varies according to the configuration of the specific system.
8 Air suction side -
9 Air discharge side - 3 For maintenance of the air filter, it is necessary to provide a service access panel.
10 Nameplate - Refer to the ‘filter installation method’ drawing.

FXMQ63-80P7
FXMQ63-80P7
(Knock out hole)
Fresh air intake position
Suspension bolt
350 or more (Service space)

Detail B
(On circumference) 500 or more
(Service space)
1038 (Suspension position)

Liquid pipe connection
ø 9.52 Flare connection
1
ø 15.90 Flare connection
Gas pipe connection
2
390 or more (Service space) 631 (Suspension position) Item Name Description - Detail B
VP25 (OD ø 32, ID ø 25)
3
Drain pipe connection
Remote control wiring connection
4
-
Drain hole
6 5 Power supply connection VP25 (OD ø 32, ID ø 25)
7 Air filter -
8 Air suction side -
9 Air discharge side -
(Ceiling opening)
10 Nameplate -
NOTES
(Ceiling opening) View A-A 1. Refer to the outlook drawing of optional accessories when installing them.
2. The required ceiling depth varies according to the configuration of the specific
system.
3. For maintenance of the air filter, it is necessary to provide a service access
panel.
4. Optional decoration panel: BYBS71DJW1 (light ivory white 10Y9/0.5)
With decoration panel
3TW31234-1B
256
