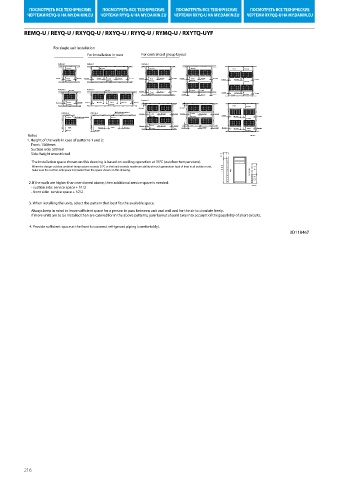

REMQ-U / REYQ-U / RXYQQ-U / RXYQ-U / RYYQ-U / RYMQ-U / RXYTQ-UYF
REMQ5U
REYQ8-20U
RXYQQ8-20U For single unit installation
RXYQ8-20U
RYYQ8-20U For installation in rows For centralised group layout
RYMQ-20U
Pattern 1 Pattern 1 Pattern 1
Front 500 or more
300 or more 300 or more 300 or more 300 or more
10 or more Front 10 or more 10 or more 20 or more Front 20 or more 10 or more 10 or more Front 20 or more 10 or more 10 or more Front 20 or more 10 or more 10 or more 20 or more 10 or more
500 or more 500 or more 600 or more 500 or more
900 or more
Pattern 2 Pattern 2
100 or more 100 or more 300 or more Front
10 or more Front 20 or more 10 or more 10 or more
500 or more 20 or more 10 or more
10 or more 20 or more 10 or more Front 500 or more
Pattern 2
Front 50 or more 50 or more
50 or more 50 or more 100 or more Front 100 or more
500 or more 500 or more
Front 500 or more
100 or more 100 or more
Pattern 3 Pattern 3 Wall height unrestricted 50 or more Front 100 or more 50 or more 50 or more Front 100 or more 50 or more
500 or more 500 or more 50 or more 100 or more 50 or more
300 or more Wall height unrestricted 300 or more
600 or more
50 or more Front 100 or more 50 or more
Front 400 or more Front 400 or more 500 or more 50 or more 100 or more 50 or more 50 or more 50 or more
100 or more Front
200 or more 200 or more 500 or more
Notes < Unit : mm >
1. Height of the walls in case of patterns 1 and 2:
Front: 1500mm
Suction side: 500mm
Side: height unrestricted ｈ２
The installation space shown on this drawing is based on cooling operation at 35°C (outdoor temperature).
When the design outdoor ambient temperature exceeds 35°C or the load exceeds maximum ability of much generation load of heat in all outdoor unit,
make sure the suction-side space is broader than the space shown on this drawing. １５５５ Front Suction side ｈ１
５５５
2. If the walls are higher than mentioned above, then additional service space is needed:
- suction side: service space + h1/2 < Unit : mm >
- front side: service space + h2/2
3. When installing the units, select the pattern that best ts the available space.
Always keep in mind to leave su cient space for a person to pass between unit and wall and for the air to circulate freely.
If more units are to be installed than are catered for in the above patterns, your layout should take into account of the possibility of short circuits.
4. Provide su cient space at the front to connect refrigerant piping (comfortably).
