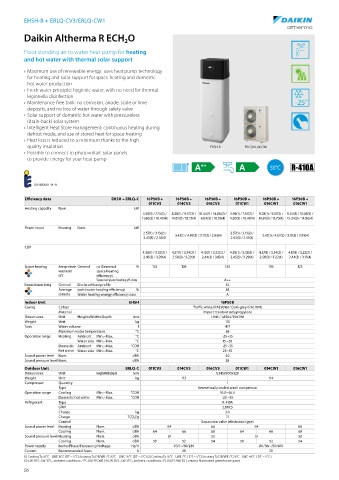

Page 88 - General Catalogue

EHSH-B + ERLQ-CV3/ERLQ-CW1

Daikin Altherma R ECH O
2
Floor standing air to water heat pump for heating
and hot water with thermal solar support

› Maximum use of renewable energy: uses heat pump technology
for heating and solar support for space heating and domestic
hot water production
› Fresh water principle: hygienic water, with no need for thermal
legionella disinfection
› Maintenance-free tank: no corrosion, anode, scale or lime
deposits, and no loss of water through safety valve
› Solar support of domestic hot water with pressureless
(drain-back) solar system
› Intelligent Heat Store management: continuous heating during
defrost mode, and use of stored heat for space heating
› Heat loss is reduced to a minimum thanks to the high
quality insulation EHSH-B ERLQ011-016CW1
› Possible to connect to photovoltaïc solar panels A +++ A +
to provide energy for your heat pump
A ++ A 55°C

A + B
011-1W0087  95
A C
Efficiency data EHSH + ERLQ-C 16P50B + 16P50B + 16P50B + 16P50B + 16P50B + 16P50B +
D
011CV3 014CV3 B 016CV3 011CW1 014CW1 016CW1
Heating capacity Nom. kW
E
C
5.95(1) / 7.74(2) / 8.28(1) / 9.57(2) / 15.34(1) / 14.86(2) / 5.95(1) / 7.74(2) / 8.28(1) / 9.57(2) / 8.04(1) / 10.05(2) /
11.80(3) / 10.40(4) 14.81(3) / 13.73(4) 8.04(3) / 10.05(4) 11.80(3) / 10.40(4) 14.81(3) / 13.73(4) 15.34(3) / 14.86(4)
D F
Power input Heating Nom. kW
2.57(1) / 3.13(2) / 3.42(1) / 4.07(2) / 3.17(3) / 2.93(4) 2.57(1) / 3.13(2) / 3.42(1) / 4.07(2) / 3.17(3) / 2.93(4)
G
2.43(3) / 2.35(4) E 2.43(3) / 2.35(4)
COP
F
4.38(1) / 3.32(2) / 4.27(1) / 3.34(2) / 4.10(1) / 3.22(2) / 4.38(1) / 3.32(2) / 4.27(1) / 3.34(2) / 4.10(1) / 3.22(2) /
2.45(3) / 3.29(4) 2.58(3) / 3.22(4) 2.44(3) / 3.15(4) 2.45(3) / 3.29(4) 2.58(3) / 3.22(4) 2.44(3) / 3.15(4)
126 G
Space heating Average climate General ŋs (Seasonal % 125 125 126 125
water outlet space heating
55°C efficiency)
Seasonal space heating eff. class A++
Domestic hot water heating General Declared load profile XL
Average ŋwh (water heating efficiency) % 83
climate Water heating energy efficiency class A
Indoor Unit EHSH 16P50B
Casing Colour Traffic white (RAL9016) / Dark grey (RAL7011)
Material Impact resistant polypropylene
Dimensions Unit HeightxWidthxDepth mm 1,945 / 1,890x790x790
Weight Unit kg 113
Tank Water volume l 477
Maximum water temperature °C 85
Operation range Heating Ambient Min.~Max. °C -25~35
Water side Min.~Max. °C 15 ~55
Domestic Ambient Min.~Max. °CDB -25~35
hot water Water side Min.~Max. °C 25~55
Sound power level Nom. dBA 40
Sound pressure level Nom. dBA 28
Outdoor Unit ERLQ-C 011CV3 014CV3 016CV3 011CW1 014CW1 016CW1
Dimensions Unit HeightxWidthxDepth mm 1,345x900x320
Weight Unit kg 113 114
Compressor Quantity 1
Type Hermetically sealed scroll compressor
Operation range Cooling Min.~Max. °CDB 10.0~46.0
Domestic hot water Min.~Max. °CDB -20 ~35
Refrigerant Type R-410A
GWP 2,087.5
Charge kg 3.4
Charge TCO2Eq 7.1
Control Expansion valve (electronic type)
Sound power level Heating Nom. dBA 64 66 64 66
Cooling Nom. dBA 64 66 69 64 66 69
Sound pressure level Heating Nom. dBA 51 52 51 52
Cooling Nom. dBA 50 52 54 50 52 54
Power supply Name/Phase/Frequency/Voltage Hz/V V3/1~/50/230 W1/3N~/50/400
Current Recommended fuses A 40 20
(1) Cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C) (2) Cooling Ta 35°C - LWE 7°C ( DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 45°C ( DT = 5°C )
(3) EW 30°C; LW 35°C; ambient conditions: -7°CDB/-8°CWB (4) EW 30°C; LW 35°C; ambient conditions: 2°CDB/1°CWB (5) Contains fluorinated greenhouse gases
86 86
