INTRODUCTION

Centralised control systems

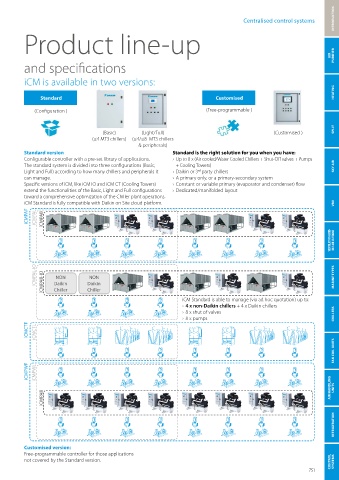

Product line-up

AIR PURIFIER
and specifications

iCM is available in two versions:
HEATING
Standard Customised

(Configuration ) (Free-programmable )

SPLIT
(Basic) (Light/Full) (Customised )
(≤4 MT3 chillers) (≤4/≤8 MT3 chillers
& peripherals)
Standard version Standard is the right solution for you when you have:
Configurable controller with a pre-set library of applications. › Up to 8 x (Air cooled/Water Cooled Chillers + Shut-Off valves + Pumps
The standard system is divided into three configurations (Basic, + Cooling Towers) SKY AIR
Light and Full) according to how many chillers and peripherals it › Daikin or 3 party chillers
rd
can manage. › A primary only, or a primary-secondary system
Specific versions of iCM, like iCM IO and iCM CT (Cooling Towers) › Constant or variable primary (evaporator and condenser) flow
extend the functionalities of the Basic, Light and Full configurations › Dedicated/manifolded layout
toward a comprehensive optimization of the Chiller plant operations.
iCM Standard is fully compatible with Daikin on Site cloud platform. VRV
iCMPAF iCMPAL iCMPAB

VENTILATION & BID- DLE AIR CURTAINS

iCMPAL-IO iCMPAB-IO Daikin Daikin MARINE TYPES
NON
NON
Chiller
Chiller
iCM Standard is able to manage (via ad hoc quotation) up to:
› 4 x non-Daikin chillers + 4 x Daikin chillers
› 8 x shut of valves CHILLERS
› 8 x pumps
iCMCTF iCMCTL

FAN COIL UNITS

iCMPWF iCMPWL

iCMPAB AIR HANDLING UNITS

REFRIGERATION

Customised version:
Free-programmable controller for those applications
not covered by the Standard version. CONTROL SYSTEMS
751
