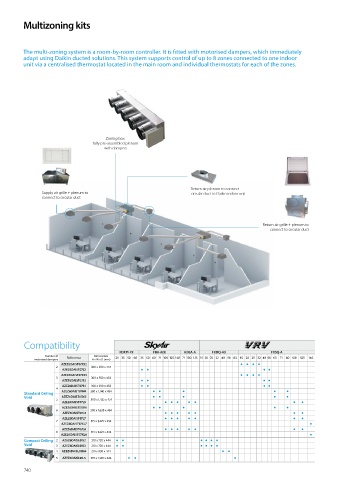

Multizoning kits

The multi-zoning system is a room-by-room controller. It is fitted with motorised dampers, which immediately
adapt using Daikin ducted solutions. This system supports control of up to 8 zones connected to one indoor
unit via a centralised thermostat located in the main room and individual thermostats for each of the zones.

Zoning box:
fully pre-assembled plenum
with dampers

Return air plenum to connect
Supply air grille + plenum to circular duct to Daikin indoor unit
connect to circular duct

Return air grille + plenum to
connect to circular duct

Compatibility

FDXM-F9 FBA-A(9) ADEA-A FXDQ-A3 FXSQ-A
Number of Dimensions
motorised dampers Reference H x W x D (mm) 25 35 50 60 35 50 60 71 100 125 140 71 100 125 15 20 25 32 40 50 63 15 20 25 32 40 50 63 71 80 100 125 140
AZEZ6DAIST07XS2 • • • •
2 300 x 930 x 454
AZEZ6DAIST07S2 • • • •
AZEZ6DAIST07XS3 • • • •
3 300 x 930 x 454
AZEZ6DAIST07S3 • • • •
AZEZ6DAIST07S4 300 x 930 x 454 • • • •
4 • • • • •
Standard Ceiling AZEZ6DAIST07M4 300 x 1,140 x 454
Void AZEZ6DAIST07M5 • • • • •
5 300 x 1,425 x 454
AZEZ6DAIST07L5 • • • • • • •
AZEZ6DAIST07M6 • • • • •
6 300 x 1,638 x 454
AZEZ6DAIST07L6 • • • • • • •
AZEZ6DAIST07L7 • • • • • • •
7 515 x 1,425 x 454
AZEZ6DAIST07XL7 •
AZEZ6DAIST07L8 • • • • • • •
8 515 x 1,425 x 454
AZEZ6DAIST07XL8 •
Compact Ceiling 2 AZEZ6DAISL01S2 210 x 720 x 444 • • • • • •
Void 3 AZEZ6DAISL01S3 210 x 720 x 444 • • • • • •
4 AZEZ6DAISL01M4 210 x 930 x 444 • •
5 AZEZ6DAISL01L5 210 x 1,140 x 444 • • •
